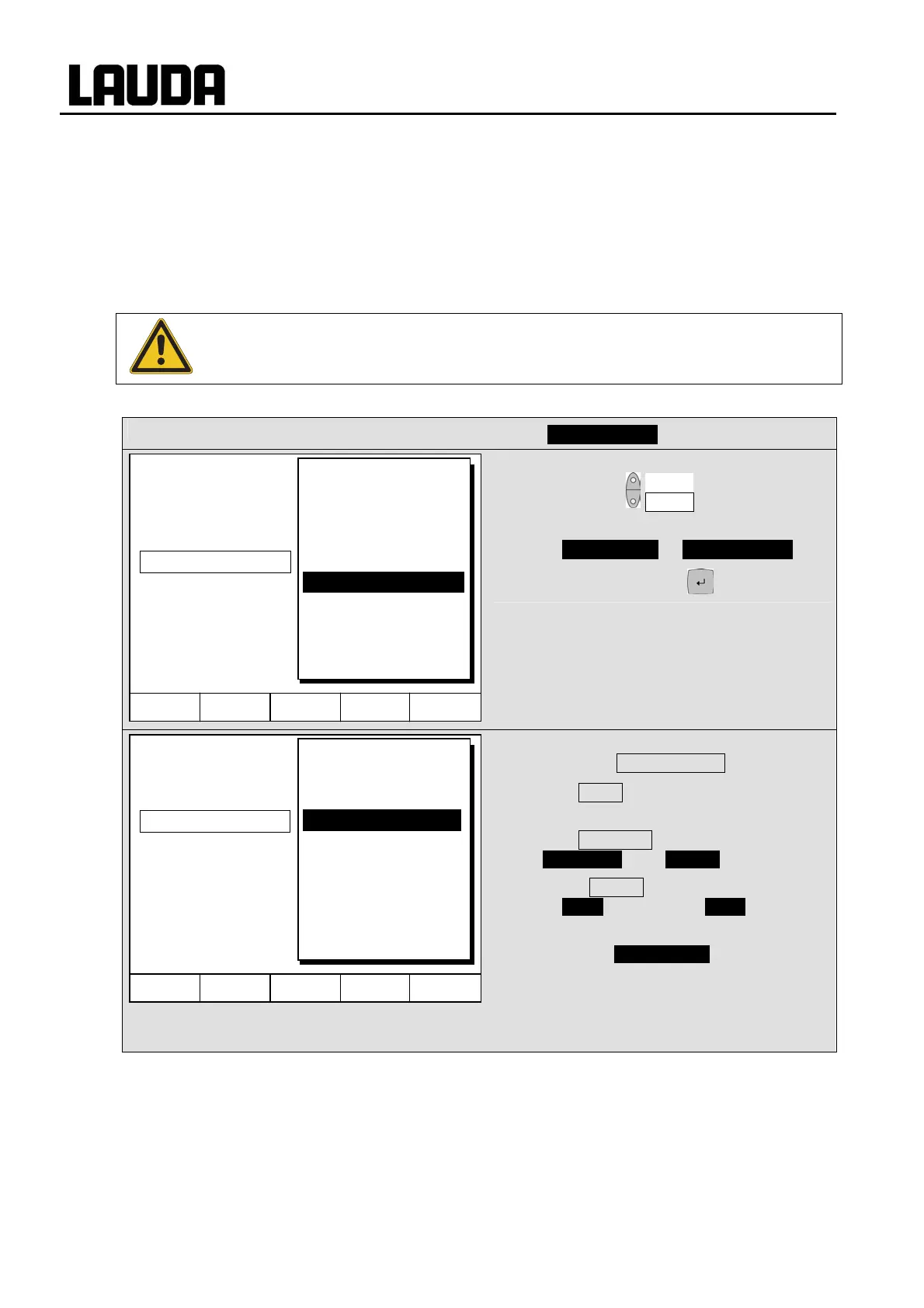

7.9 Ramp function
With the ramp function, temperature changes over any time period can be conveniently entered. This is
especially advantageous with very low temperature changes (e.g. 0.1 °C/ day).
Example: From the current outflow temperature (e.g. 242.4 °C) 200 °C of cooling is to occur over 5
days.
Then 200 °C is entered as the temperature change, the time value 5 is entered for the time and day(s)
selected as the time unit.
The ramp function is executed until it is manually terminated or until the temperature limits
T
il
(min) or T
ih
(max) described in Section 7.6.2 are attained.
Command
− Ramp function
− Open the list of device parameters using
the soft key Menu .
− With the cursor keys continue to
Æ Programmer Æ Ramp function .
− Confirm with the key .
− Enter a positive or negative temperature
value with Temp. change .
− With Time enter a figure (without time
unit).
− With Time unit choose between
Second(s) up to Day(s) .
− Under Status the ramp is started
Æ Start or stopped Æ Stop .
− When the ramp function is being
executed, Ramp active appears in the
window bar.
− Without manual switch-off the ramp
terminates at the latest at T
il
(min) or T
ih
(max).
Hel
Menu End T
set
T
fix
Pump
Settings
Graph
Clock
Programmer
Interfaces
Control
Limits
Program 1
Program 2
Program 3
Program 4
Program 5
Ramp function
Hel
Menu End T
set
T
fix
Status
Temp. change
Time
Time unit
Second(s)
Minute(s)
Hour(s)
Day(s)
To Next Page
