6.2 Filling and draining
Filling
)
− Close the drain cock.
− Carefully remove all residues of the previous
heat transfer liquid (blow dry and remove
screw plugs!).
− Maximum filling level is up to 10 mm below
the top edge of the bath. Overfilling leads to
the display of the warning
VW@pl0/2
(Ö7.12.4). Changes in volume of the heat
transfer liquid during temperature changes
should be taken into account.
− Best operation is with a level 30-80 mm below
the top edge of the bath.
− The cooling pipe of the evaporator should be
covered.
− Low-level cut-off occurs at about 95 mm
below the top edge of the bath.
)
− The units are designed for use with non-flammable and flammable liquids to
DIN EN 61010-2-010. Flammable liquids must not be used higher than 25 °C below its
fire point (Ö 6.3).
−
When using h
eat transfer oils note that they expand on heating (approx. 10%/ 100 K).
With enclosed external loads, the overall expansion takes place in the bath of the
Proline Kryomat.
− Ensure that with the connection of an external load, the liquid level does not drop
impermissibly due to filling the load Æ top up with liquid if necessary.
− Set the upper and lower temperature limits (Ö 7.6.2) in accordance with the limits of the
heat tran
sfer liquid in us
e.
Draining
− Switch off the thermostat on the mains switch (rotary
switch) withdraw the mains plug.
− The drain cock is located behind the front panel.
− Unscrew the olive with union nut on the drain point
(G3/8") and fit the hose onto the drain point.
− Open the drain tap and run off the heat transfer liquid.
− Close the drain tap.
)
− Follow the regulations for the disposal of used heat transfer liquids.
Do not drain heat transfer liquid when it is hot or at bath temperatures below
0 °C!

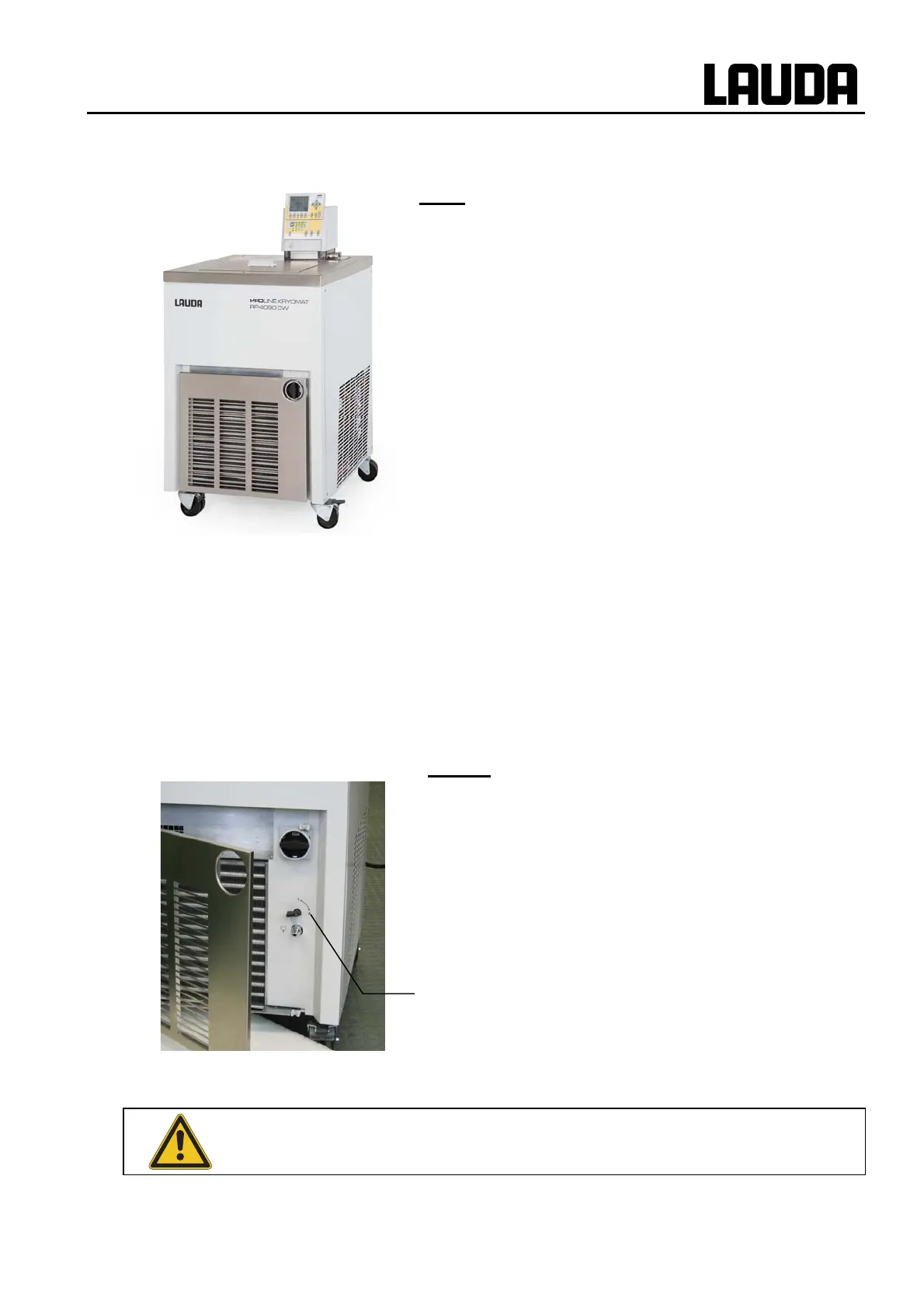

Drain cock
