Lauda RP 3090 C - Namur-Contact Module LRZ 914 with Only One Input and One Output

Proline Kryomats
94 Interface modules YAUE0007 / 2/26/2009
Contact inputs and outputs
− View of the socket from the plug side or of the plug on the solder side.
− A suitable 15-pole Sub-D plug can be obtained together with a
suitable housing:
Order no. EQM 030 and plug housing order no. EQG 017.

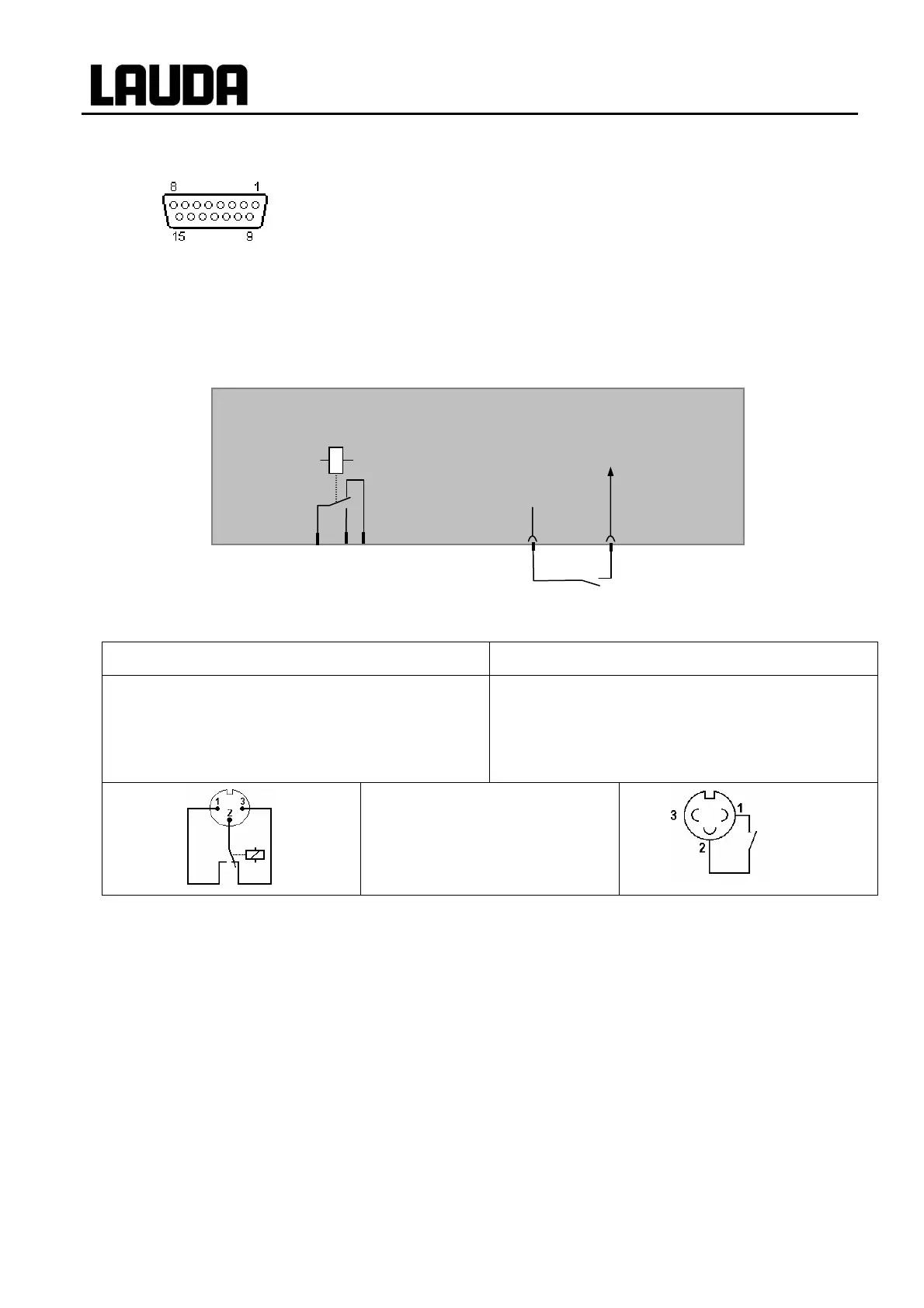

8.5.2 Namur-Contact module LRZ 914 with only one input and one output
Contact module (Cat. no. LRZ 914) with connector to NAMUR NE28. Functionality as LRZ 915, but only
one output and one input on each of two DIN sockets.
Contact inputs and outputs:
Output Input
− View on flange plug (Front) or solder side
coupler socket.
− Max. 30 V; 0.2 A.
Coupler socket Catalogue number EQD 047.
− View on flange plug (Front) or solder side
coupler socket.
− Signal circa 5 V, 10 mA. Do not use pin 3!
Coupling plug Catalogue number EQS 048.
1 = n.o. (make)
2 = common,
3 = n.c. (break)
)
− Use shielded lines. Connect shielding with connector housing. Cover unused plug
connections with protecting caps!
5V
1 Input
1 Output
Contact module LRZ 914; DIN sockets
2 1 3 1 2
