Lauda RP 3090 C User Manual

Proline Kryomats

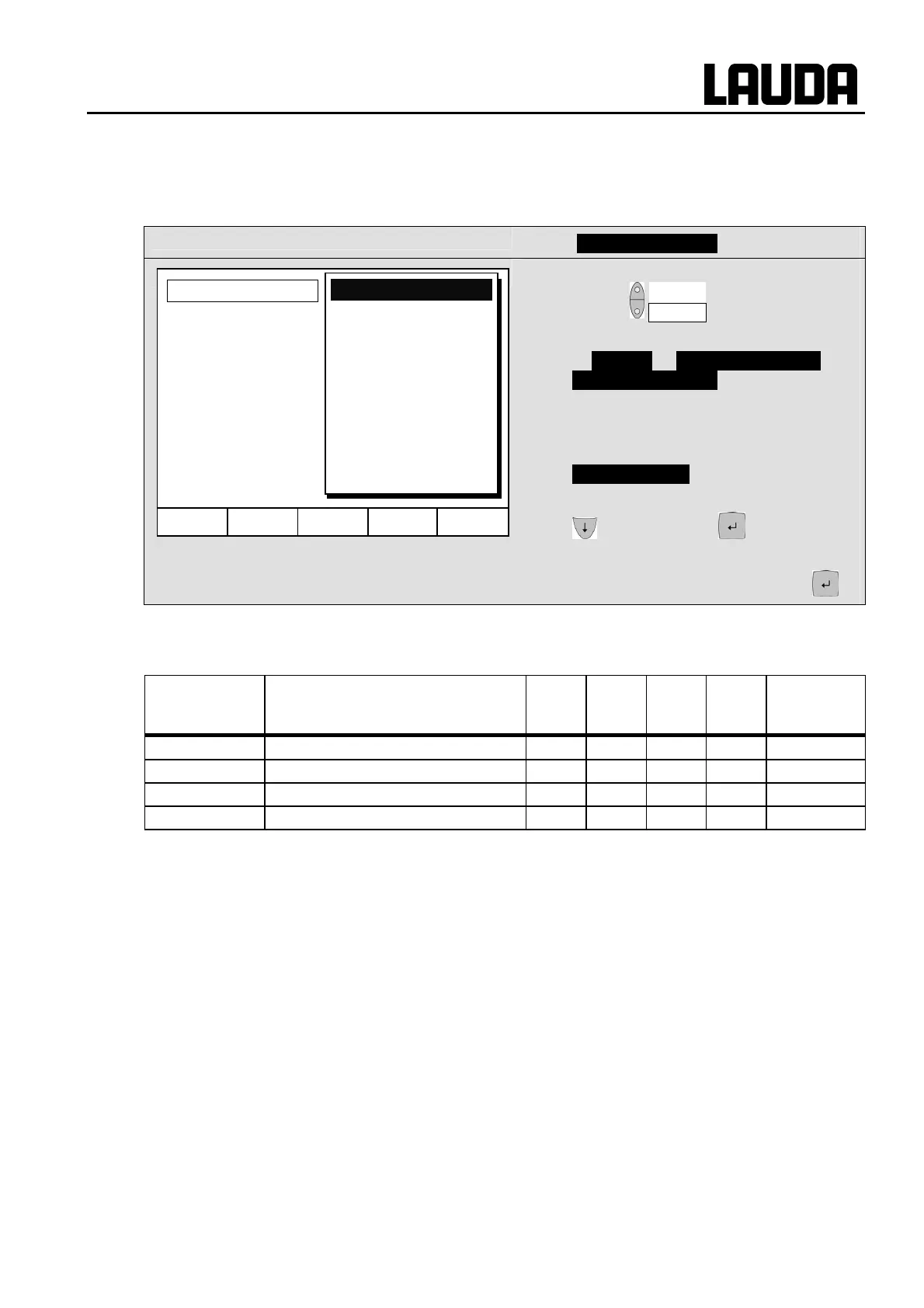

YAUE0007 / 2/26/2009 Starting up 73
7.11.1 Internal control variable (integral measurement probe)
Only read further here, if you have no external temperature probe connected (and activated according
to Section 7.5.4 as control variable).
Command
− Control Parameters
− Open the device parameter menu via the
soft key Menu .
− With the cursor keys continue to
Æ Control Æ Control Parameters Æ
Control Parameters .
− The adjacent window appears.
− Change parameters marked with (auto)
where necessary to manual input with
Tv manual/auto .
− Select the parameters to be changed with
and confirm with .
− Then in the following settings window,
change the value and confirm with .
7.11.1.1 Proven settings for control parameters and pump (integral measurement probe)
Instrument
Type
H
eat transfer liquid
Xp
^O
Tn
rl
Tv
rs
Td
rc
Pump level
RP 4090 CW Water 9.0 60 42 6.3 8
RP 4090 CW Ethanol 9.0 60 42 6.3 8
RP 4090 C Water 9.0 60 42 6.3 8
RP 4090 C Ethanol 9.0 60 42 6.3 8
Technical changes reserved!
7.11.2 External control variable (External measurement probe)
You only need to read further here if you have connected an external temperature probe or the actual
temperature is read in from a module (and you have activated it as control variable according to Section
7.5.4).
Only modify the co
ntrol parameters if you have knowl
edge of control techniques.
The control system for external actual values is implemented for improvement of the control behavior as
a two-stage cascade controller. A "master controller" determines the "internal setpoint", from the
temperature setpoint and the external temperature, passed to the slave controller. The control value of
the slave controller controls the heating and cooling.
When a setpoint step change is specified, it may be that the optimum control would set a bath
temperature, which might significantly exceed the temperature desired on the external vessel. There is
a correction limitation, which specifies the maximum permissible deviation between the temperature on
the external load and the heat transfer liquid temperature.
Hel
p
Menu End T
set
T
fix
Control Parameters
Control para. sets
Tv manual/auto
Xp 6,0
Tn 30
Tv (auto) 21
Td (auto) 3,5
