Service Manual JET3
106 Rev. 1.0

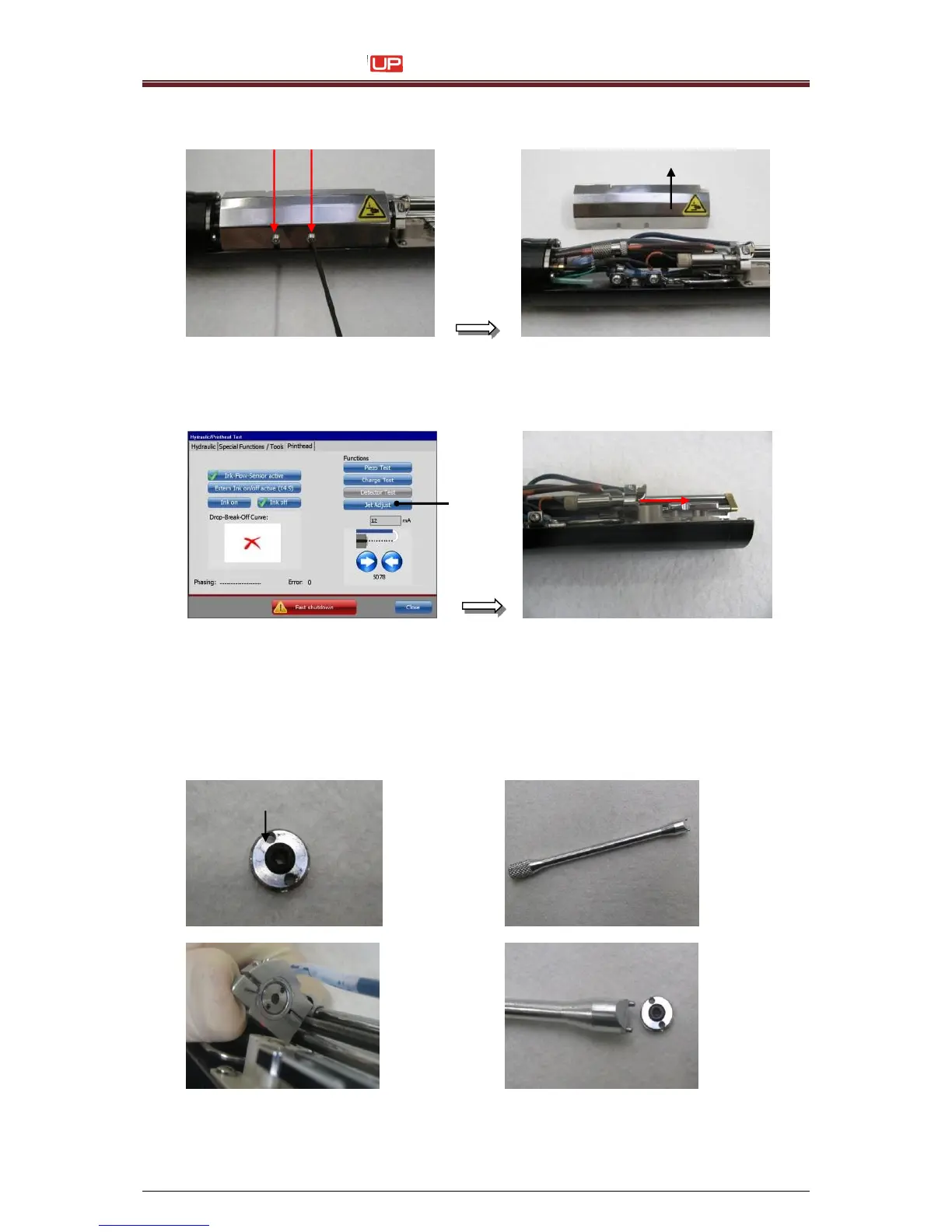

3. Remove the head cover. Unfix attachment screws around one rotation with hex key
and take off the inside cover.
4. Press the button <Jet Adjust> (1) The nozzle seal moves automatically onto the
“service position“.
5. Swing the swivel-unit upwards with one hand. Turn out the nozzle retaining plate with a
special tool and clean the retaining plate with special solvent.
(Caution: Use the special tool only!)
IMPORTANT: Don´t loose the sealing ring on the nozzle retaining plate!
Control the right position of the sealing ring!




sealing ring
1
