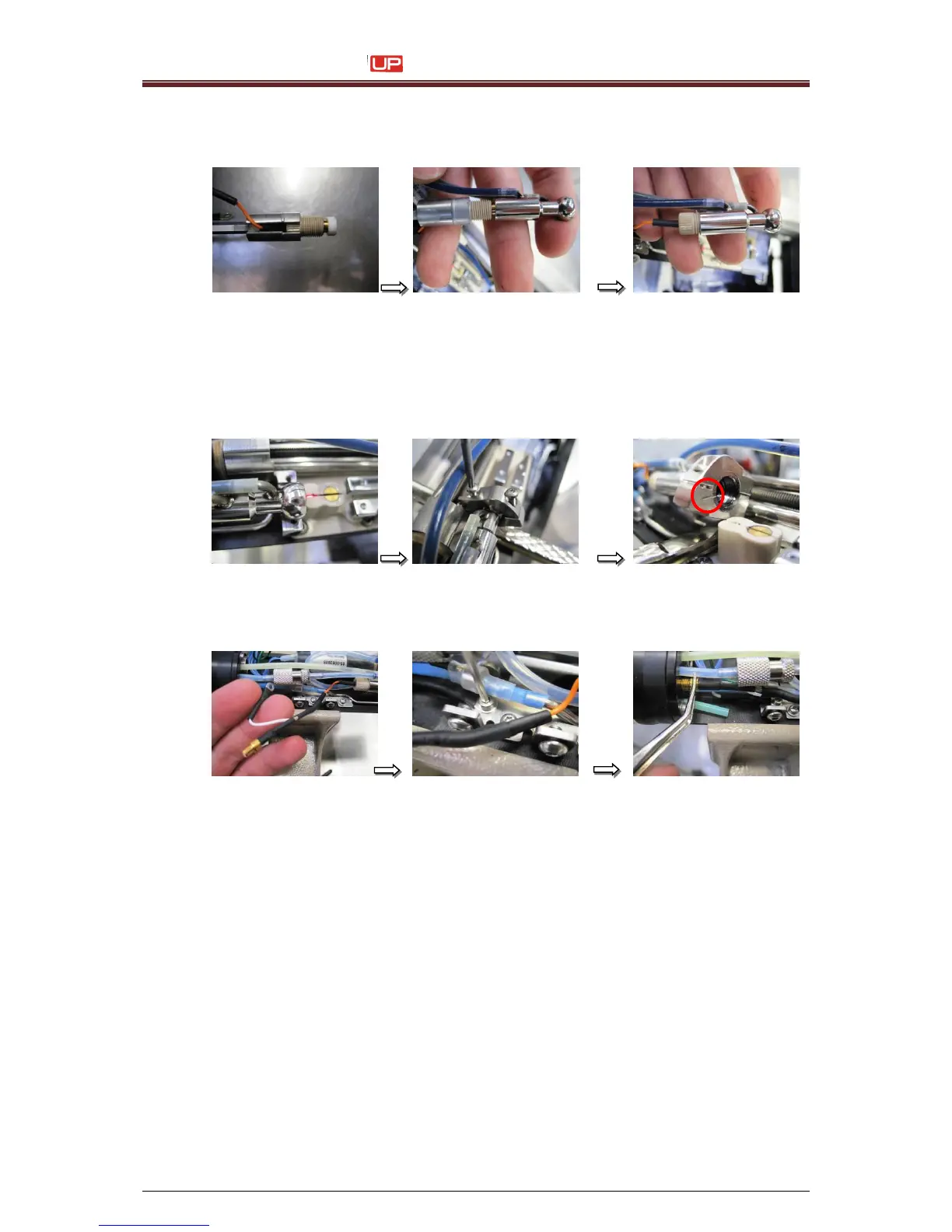

8. Plug in the new oscillator into the special tool and screw it into the drop production
body. The torque to tighten the oscillator is 0,16 Nm.
9. Mount the drop production body back on the adapter of the ground plate. Torque to
tighten the retaining screws is 0,4 Nm. The drop production body now must be
positioned correctly. Therefore take care of the markings (a slot in the drop
production body and also in the adapter). Both slots must result a long slot when the
drop production body is in the right position.
10. Tighten the grounding cable back on the ground plate. Plug in the coax cable.
11. Mount the nozzle back in the drop production body therefore take a look at the
chapter <Removing and cleaning the nozzle>.
12. Now the ink stream must be adjusted therefor take a look at the chapter <head
adjustment>.
