Service Manual JET3
118 Rev. 1.0

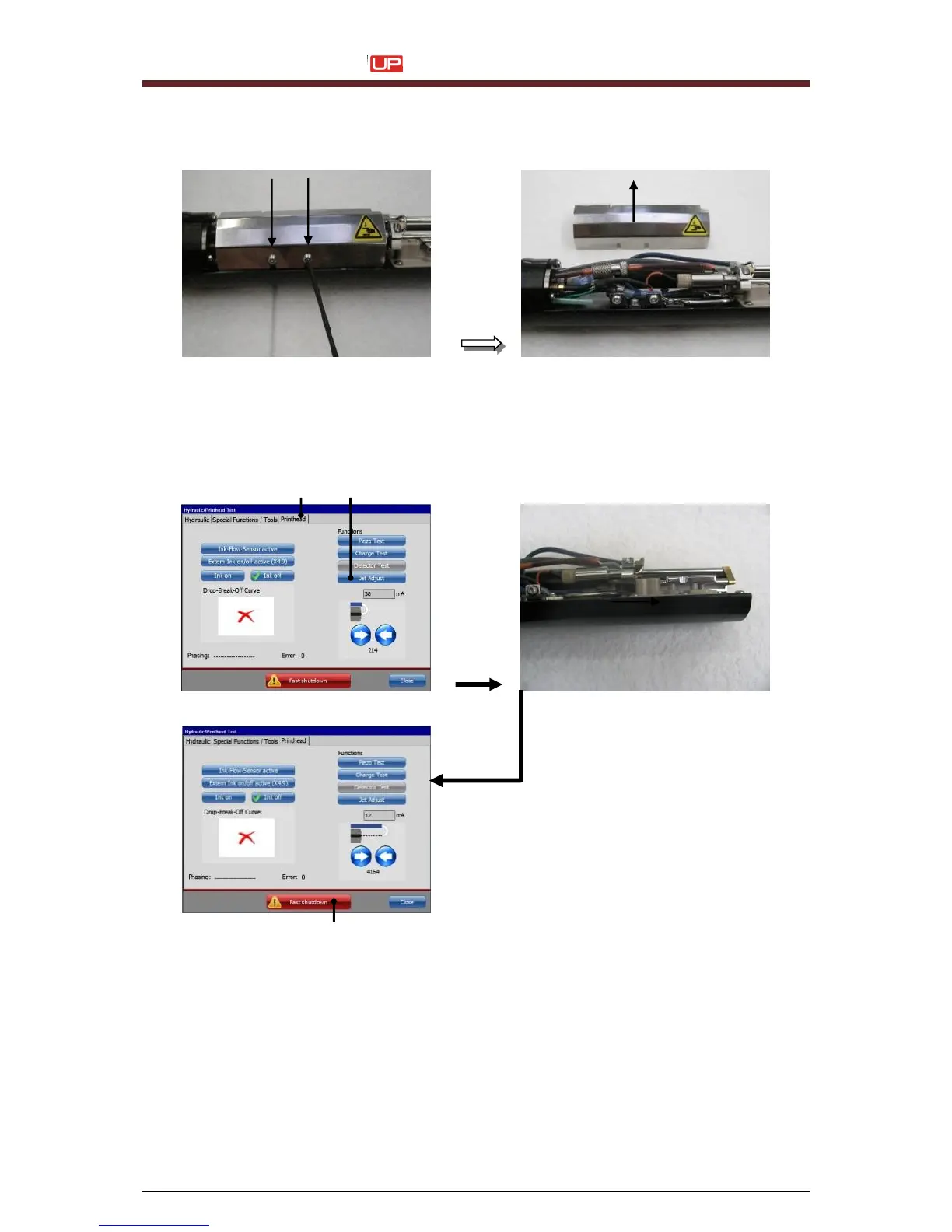

3. Remove the inner head cover. Loose the tightening screws with the 2mm hex key
around one turn and remove the inner head cover.
4. Switch to tab <Printhead> (1) and push the button <Jet Adjust> (2). The nozzle seal
will open automatically to the adjustment position. Afterwards open nozzle complete by
pressing the corresponding button. Switch off the printer by pressing the button
<Fast shutdown> (3).
1 – Menu <Printhead>
2 – Button <Jet Adjust>
3 – Button <Fast shutdown>
1
2
3
