Service Manual JET3
Rev. 1.0 119

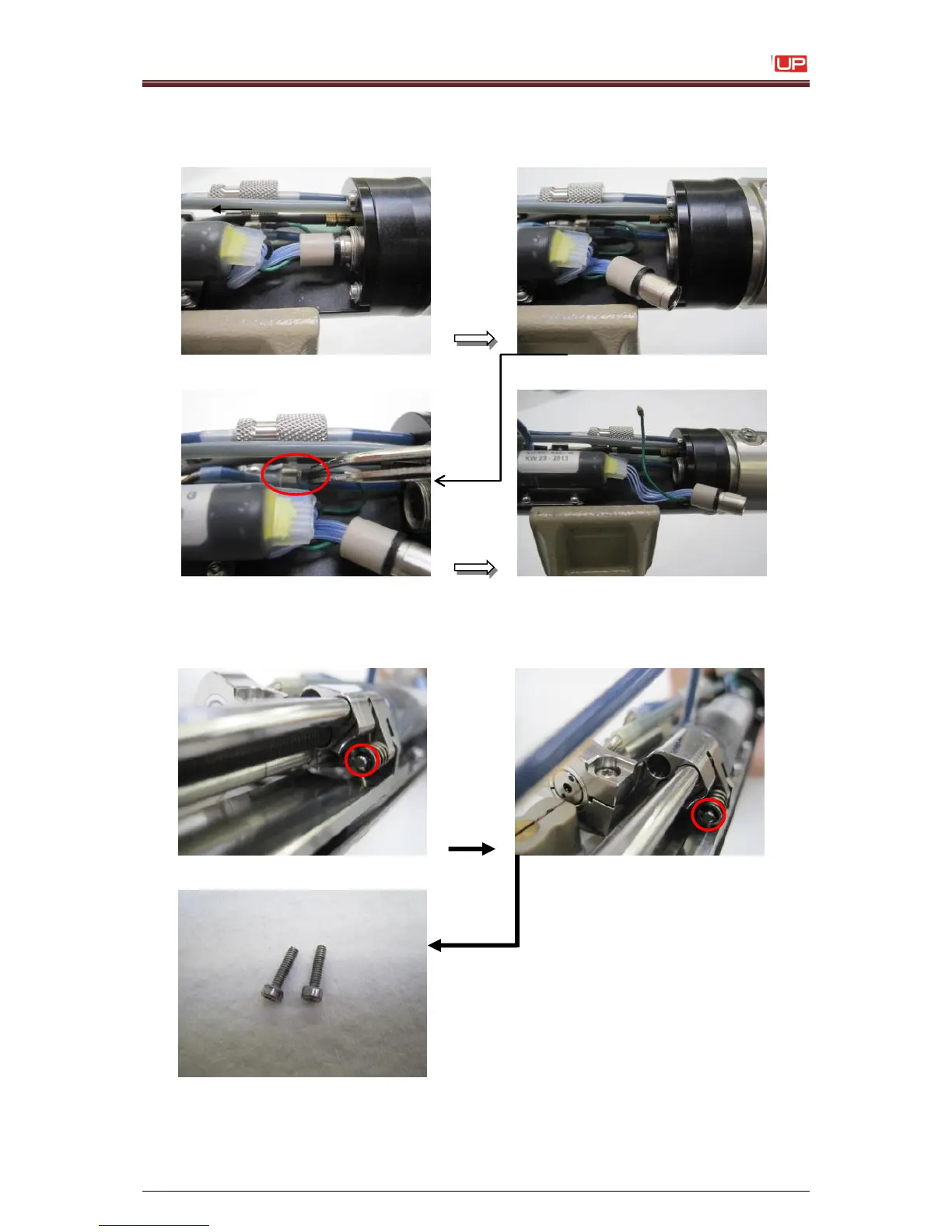

5. Disconnect the motor from the print head. Disconnect the ink flow sensor. Use the
tweezers to widen the heat shrink tube. Do not remove or damage the heat shrink
tube!
6. Loose the two tightening screws of the head motor (screw positions see red markings)
by using the 1,5mm hex key. Remove the screws completely.
