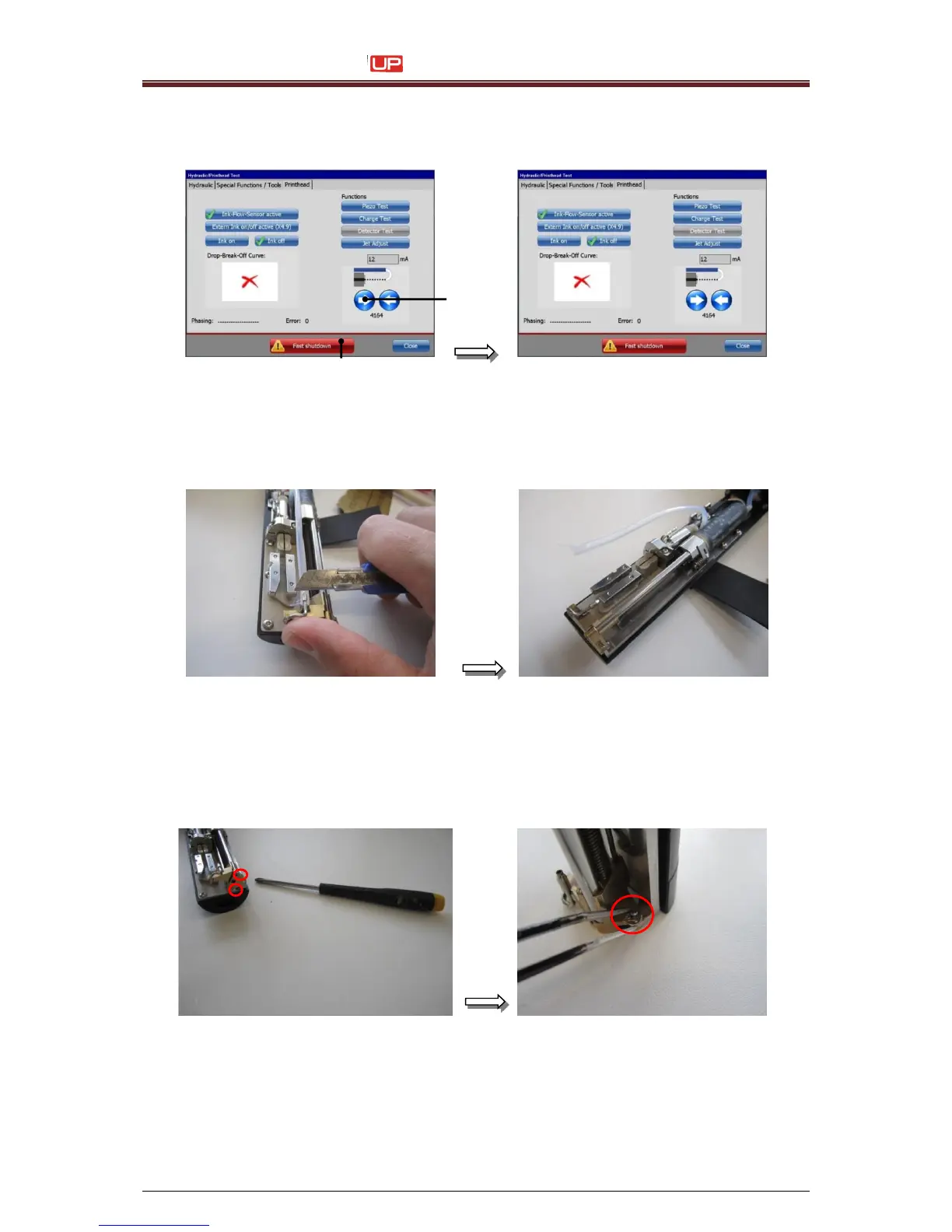

4. Open the nozzle completely with the button <Open Nozzle> (1). Then switch off the
printer with the button <Fast shutdown> (2) and remove the main plug.
1 – Button <Open Nozzle>
2 – Button <Fast shutdown>
5. Put off the headcover and slice of the flexible tube from the gutter tube.
ATTENTION: The gutter tube should not be damaged!!!
6. Unscrew the two cross head screws with a phillips-tip screwdriver, unplug the safety pin
and put of the retaining plate.
Necessary tools:
- phillips-tip screwdriver
- tweezer
Remove the retaining screws (2x)
Remove the locking ring carefully with
a tweezer.
1
2
