Service Manual JET3
Rev. 1.0 125
7. Remove the mounting bolt
8. Before you can remove the mounting bolt out of the swivel you must unscrew the 2
mounting screws for the motor mounting with an allen key (SW 1,5 mm):

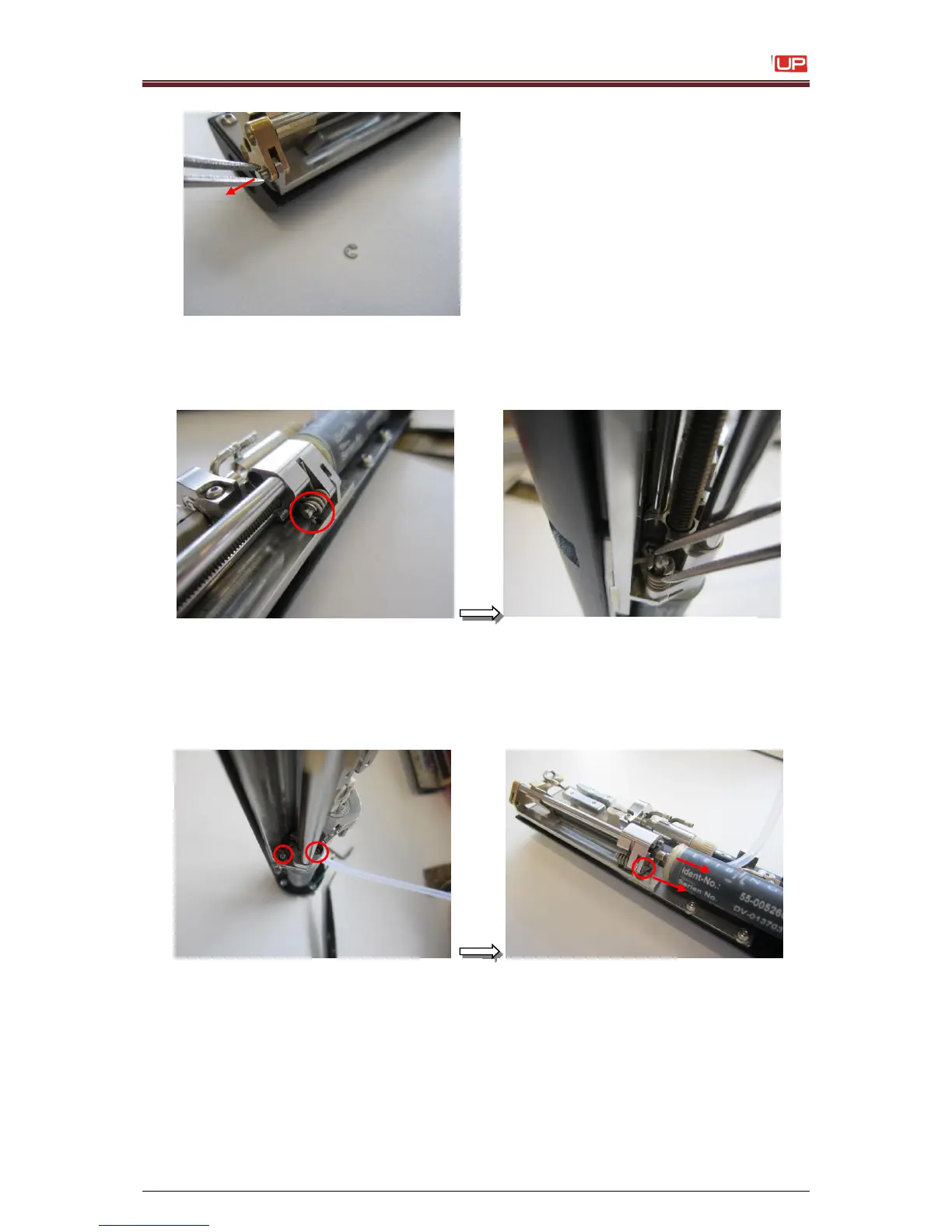

Remove the mounting bolt for the
motor-spindle mounting.
Remove the locking ring carefully
with a tweezer.
Unscrew the 2 mounting screws
completely.
Now you can pull the motor-unit behind,
so that you can remove the mounting
bolt out of the swivel.
Pull out the safety pin with a tweezer
