Service Manual JET3
Rev. 1.0 133

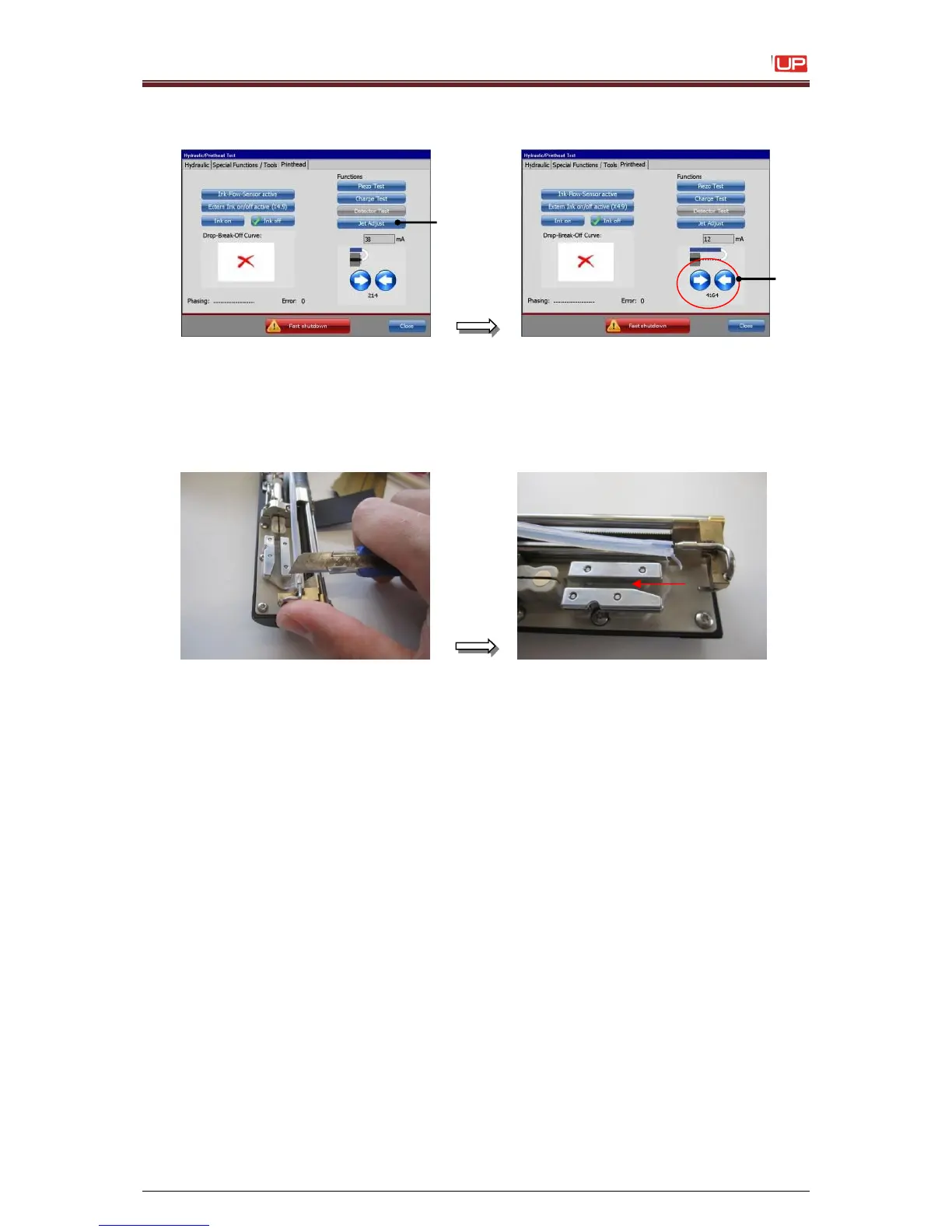

6. Touch the button <Jet Adjust> (1).
Now the gutter tube is moving automatically to a pre-defined service-position (4200) (2)
1 – Button <Jet Adjust>
2 –Service position (4200)
7. Cut off the tube.
Attention: Do not scuff or damage the gutter !!!
Cut off the old suction tube horizontal
very carefully (stripping off with a knife)
on the gutter tube.
Remove the tube carefully by hand!!!
1
2
