Leibinger JET3 up - Page 134

Service Manual JET3
134 Rev. 1.0

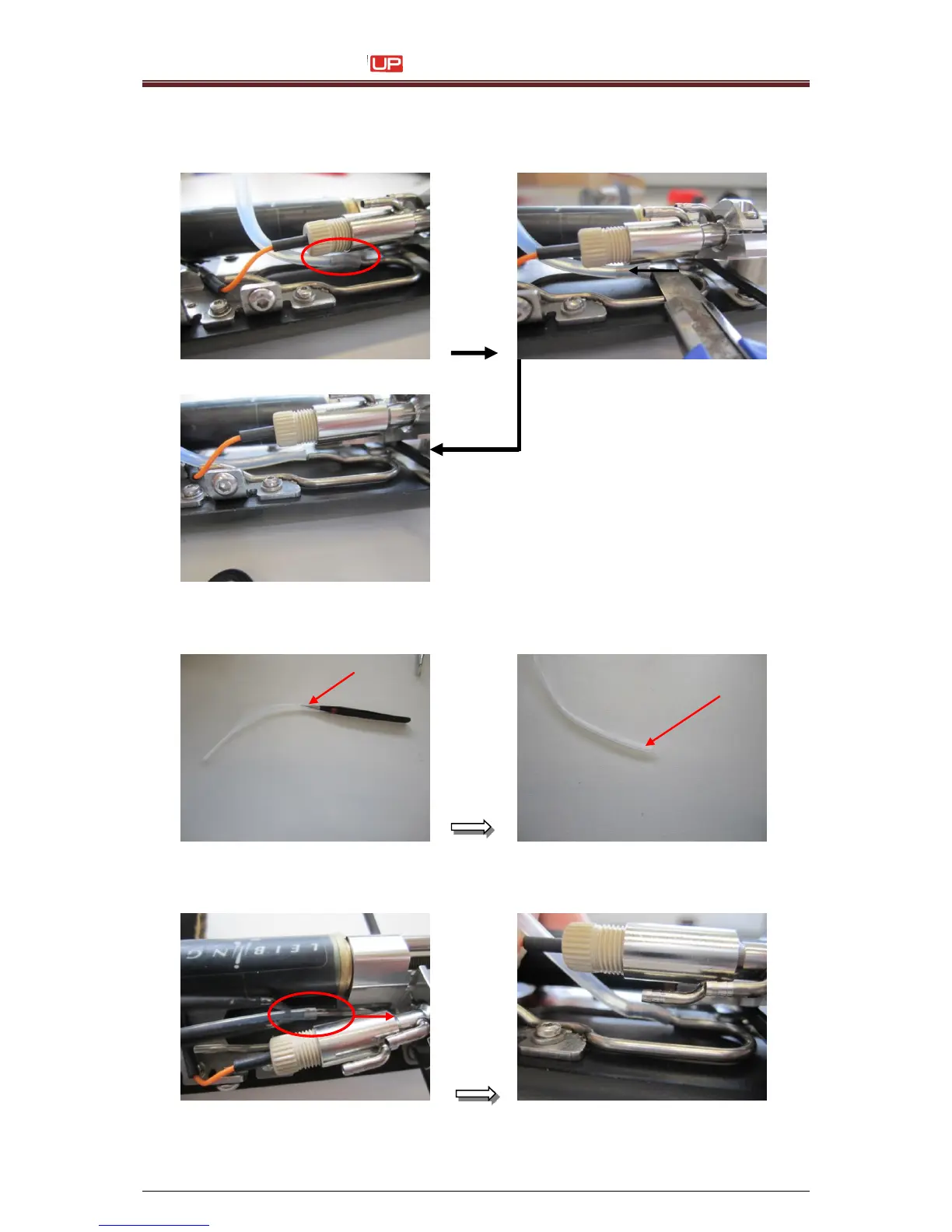

8. Cut also the old suction tube horizontal (stripping off with a knife) on the drop
production unit.
Attention: Do not scuff or damage the fitting!!!
9. Widen the tube on both sides with a long-nosed pliers.
Art. Nr.: 55-005000 K / Tube length: 120 mm
10. First connect the short side of the suction tube with the drop production unit!
It is much easier to do this with the tool (tongs), which you can order from Leibinger.
