Service Manual JET3
138 Rev. 1.0

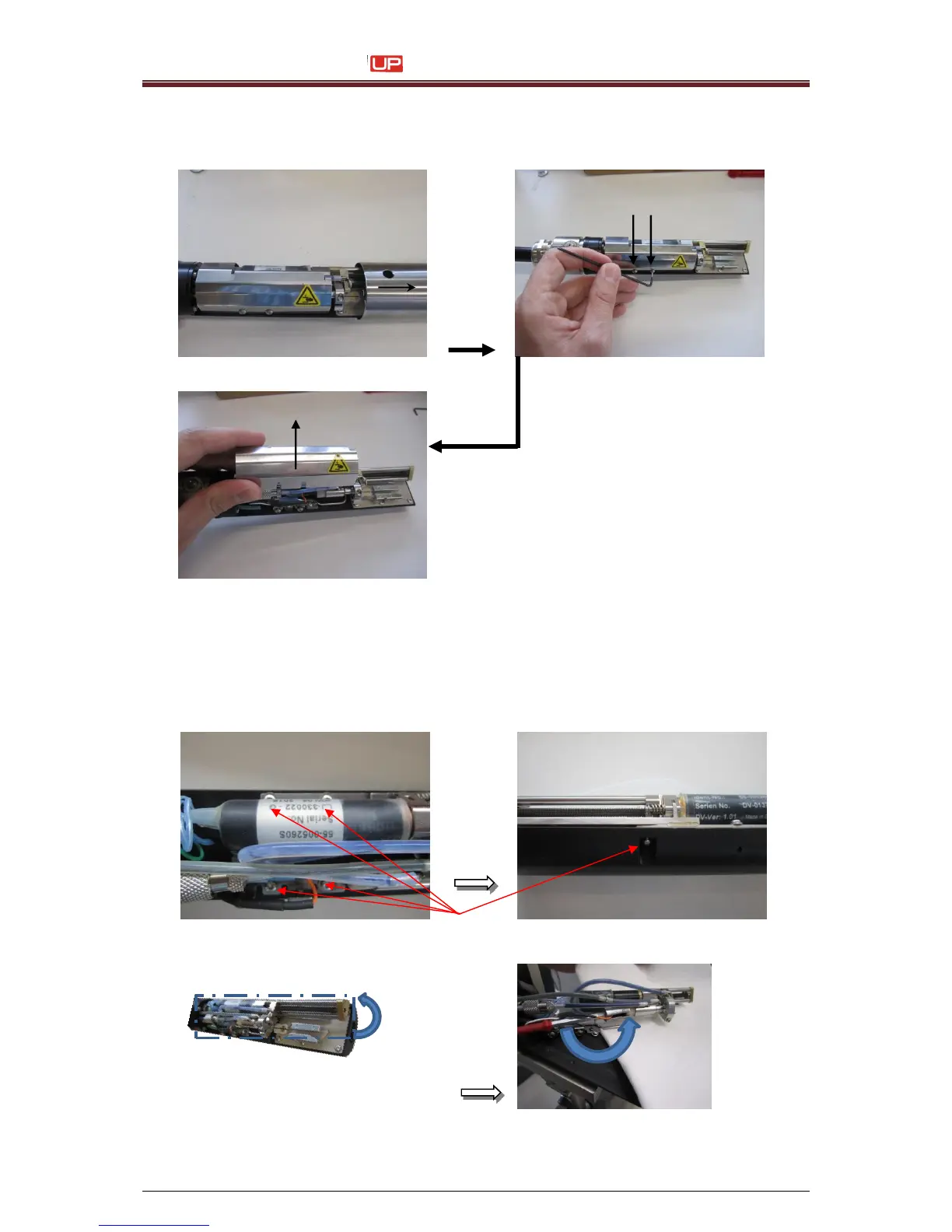

3. Remove the print head cover. Release fixing bolts with an allen key (SW 2,0) by turning
about one rotation and remove the interior cover.
Attention:
It is not allowed to use a golf ball head allen keys, otherwise screw heads
could be damaged.
4. Unscrew the attachment of the mounting plate
Swing the mounting plate (with drop production unit) out of the way.
Remove the 5 retaining torx screws and the washers with a torx screwdriver T6.
