Service Manual JET3
174 Rev. 1.0

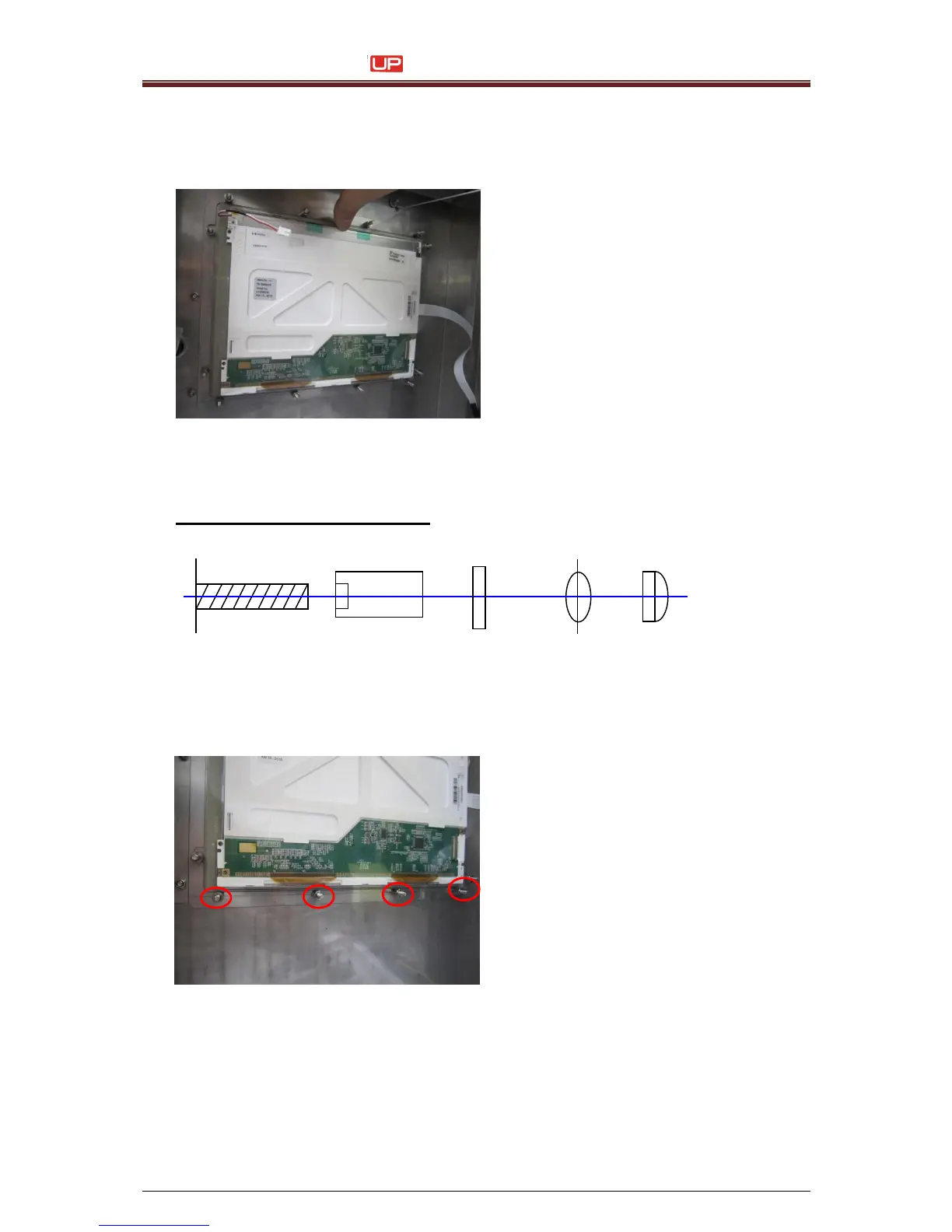

7. Extract the display out of the notch.
You don`t have to remove the spacers and the washers!
So watch out that they don`t fall down from the thread bolts!
Installation the new display
Disposition of the thread bolt :
8. Put in the new display inside the notch.
Make sure that the display is seat on all 4 bolts of the underside, like shown in the picture.
Attention!!!
After removing the frame the
display is not fixed anymore.
So you must keep out, that the
display can not fall out of the
notch!!!
To Next Page
