Service Manual JET3
Rev. 1.0 177

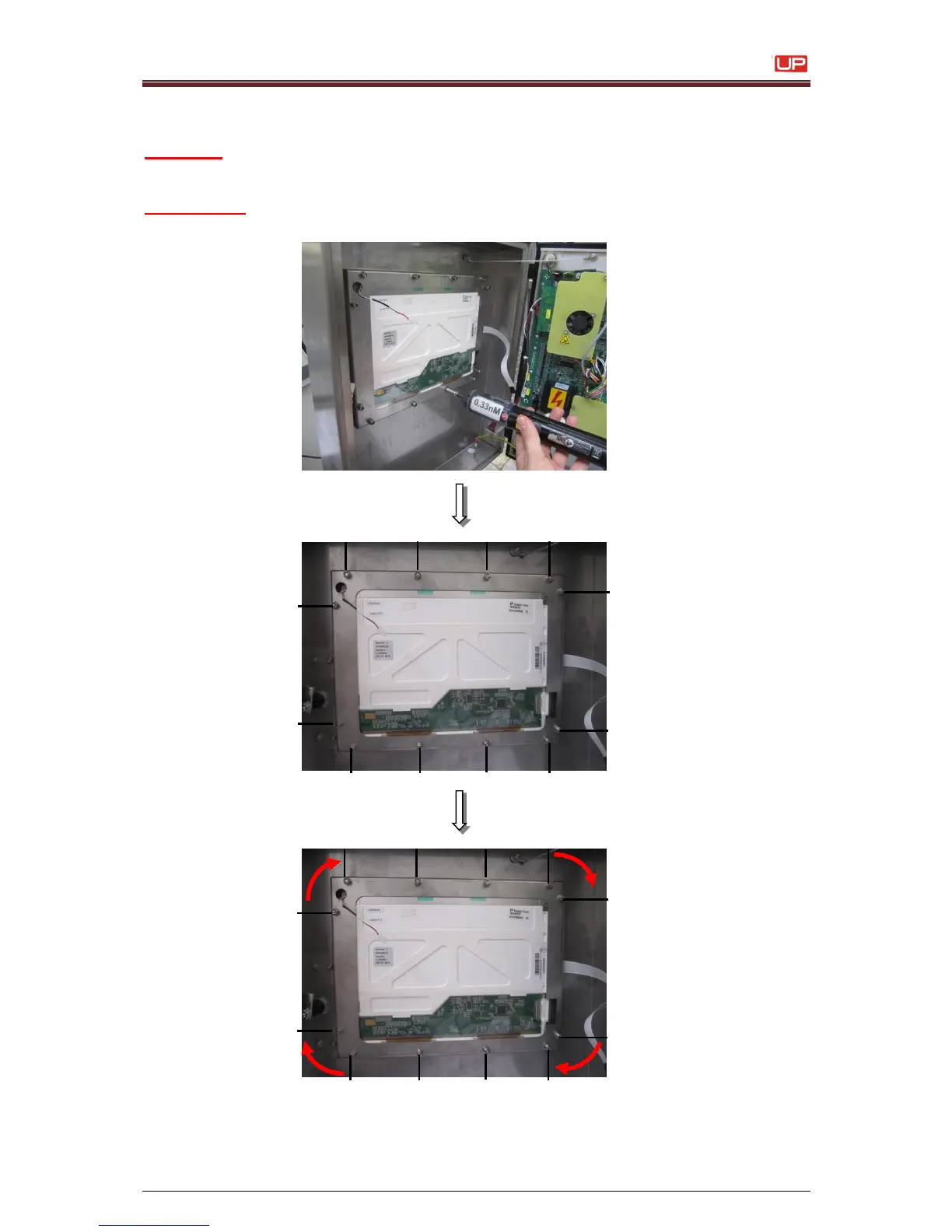

Fix the nuts for the display attachment again.
Important:
First step:
To guarantee that the frame can not to become unfastened the nuts must tighten
in crossed way.
Second step:
In addition the nuts must tighten in clockwise direction
1.Step:
tighten nuts in the
following
torque sequence
2.Step:
tighten the nuts
clockwise
2
1
3
4
5
6
7
8
9
10
11
12
7
1
10
4
11
5
12
6
2
8
3
9
