Leibinger JET3 up - Page 176

Service Manual JET3
176 Rev. 1.0
11. Fix the Display again
Important notice:
For fixing the display it is absolutely necessary that you use new self locking nuts
which are unused!!!
Necessary tools:

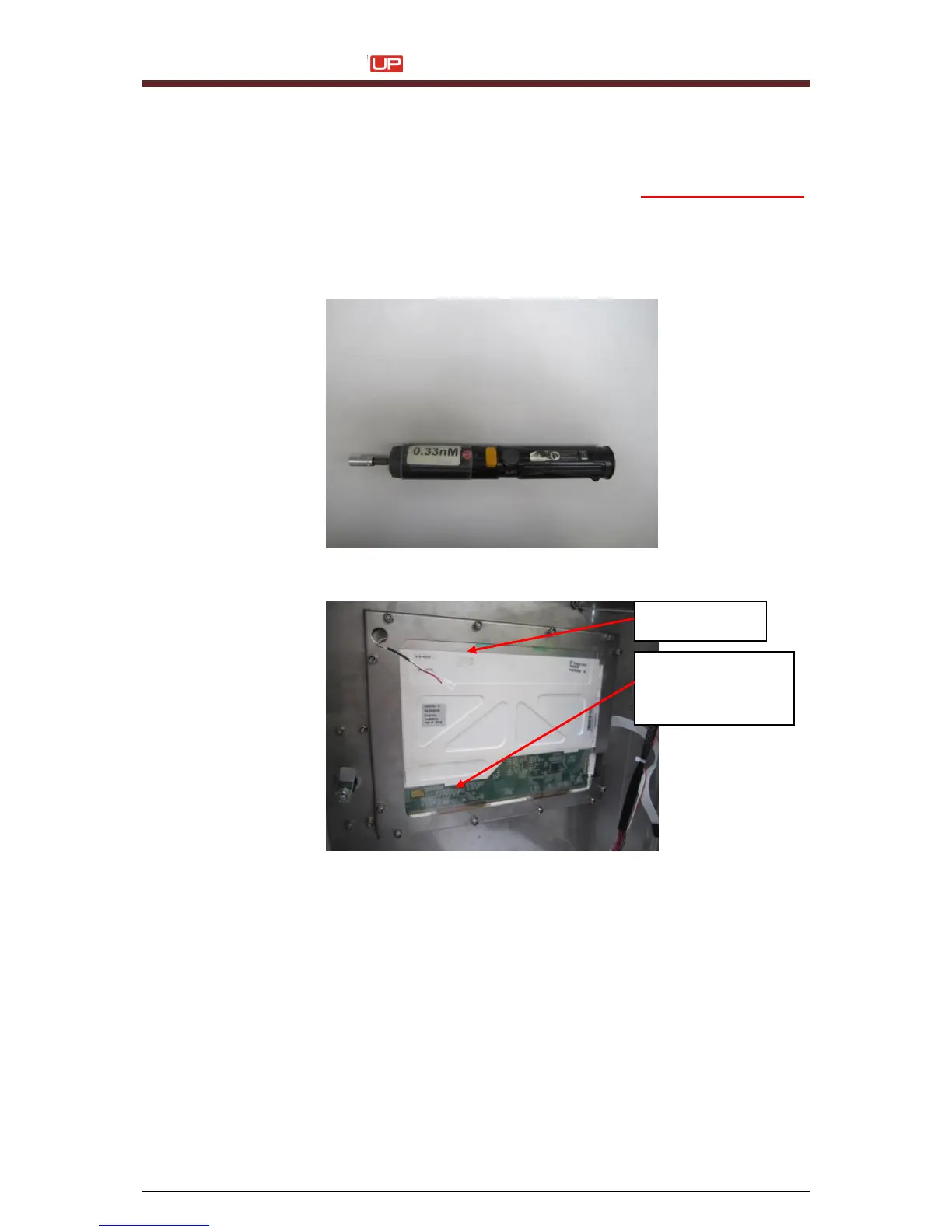

Torque spanner with socket nut (SW 7mm)
Adjust a torque of 0,33 NM at the torque spanner
After the frame is put on the display again, put at first the 12 washers and then
the 12 self-locking nuts on the thread bolts, like it is shown on the graphic (disposition of
the thread bolt) on the page before.
The blue locking ring of the nuts must be on the topside, like it is shown in the picture.
12x washers
12 x self-locking
nuts M4 with blue
locking ring.
