Service Manual JET3
188 Rev. 1.0

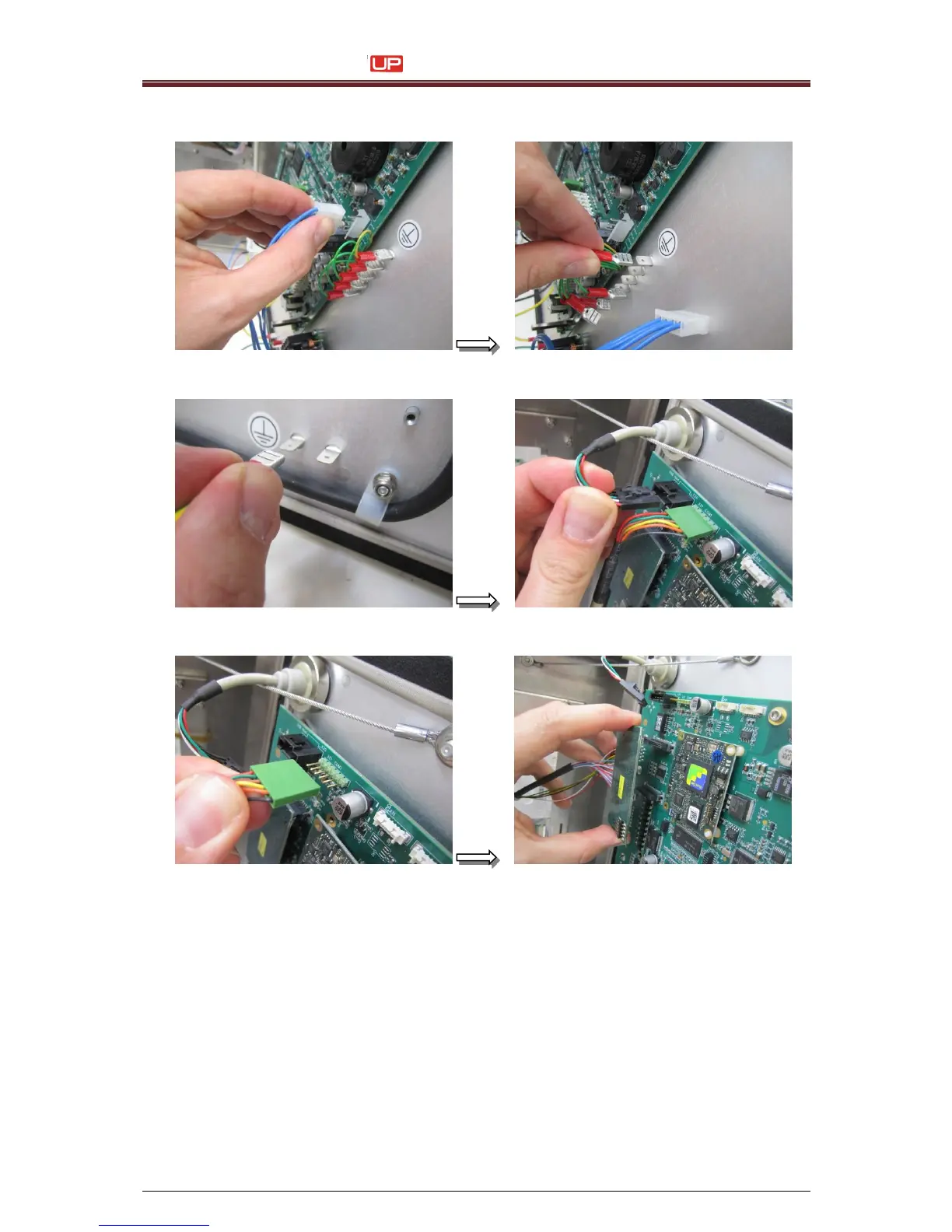

5. Disconnect the wires for the cable connection
Disconnect the power connector XS3 of the board
Disconnect the ground wire right of the board
Disconnect the ground wire below the board
Disconnect the USB-connection X20
Disconnect the cable for the Tag Reader
interface X17
Disconnect the display controller
