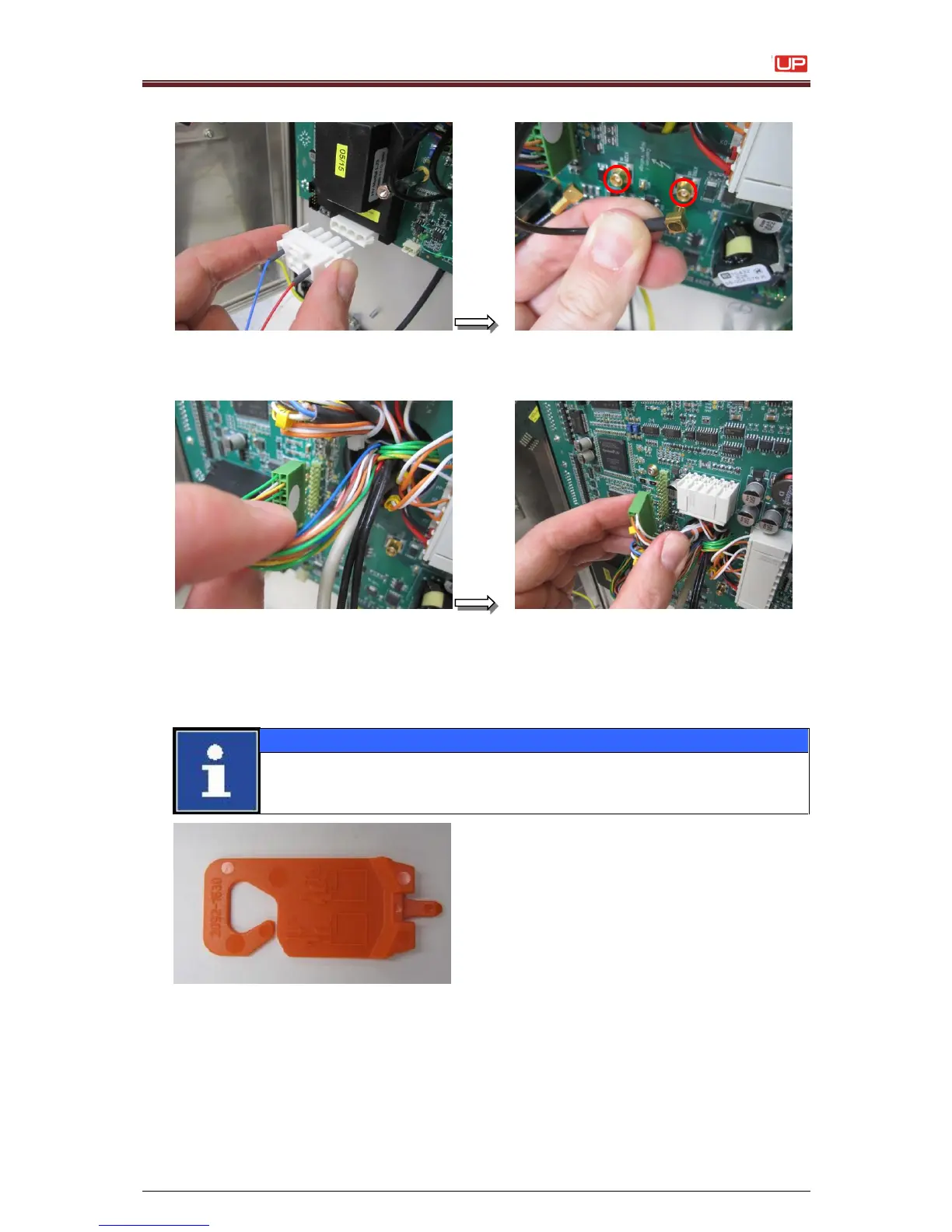

6. Disconnect hydraulic connection KL1 and optional hydraulic
connection KL 2
Information
To disconnect the interfaces KL1 and KL 2 you must take the
special assembly tool.
This tool is not an item of the delivery. You must order it extra.
Disconnect the HV Modul / converter
Disconnect the data wires for:
- X120: Charge voltage
- X190: Oscillator voltage
Disconnect the head connection X11
Disconnect the hydraulic connection X8
Special assembly tool
Art. Nr.: 55-006824 K
