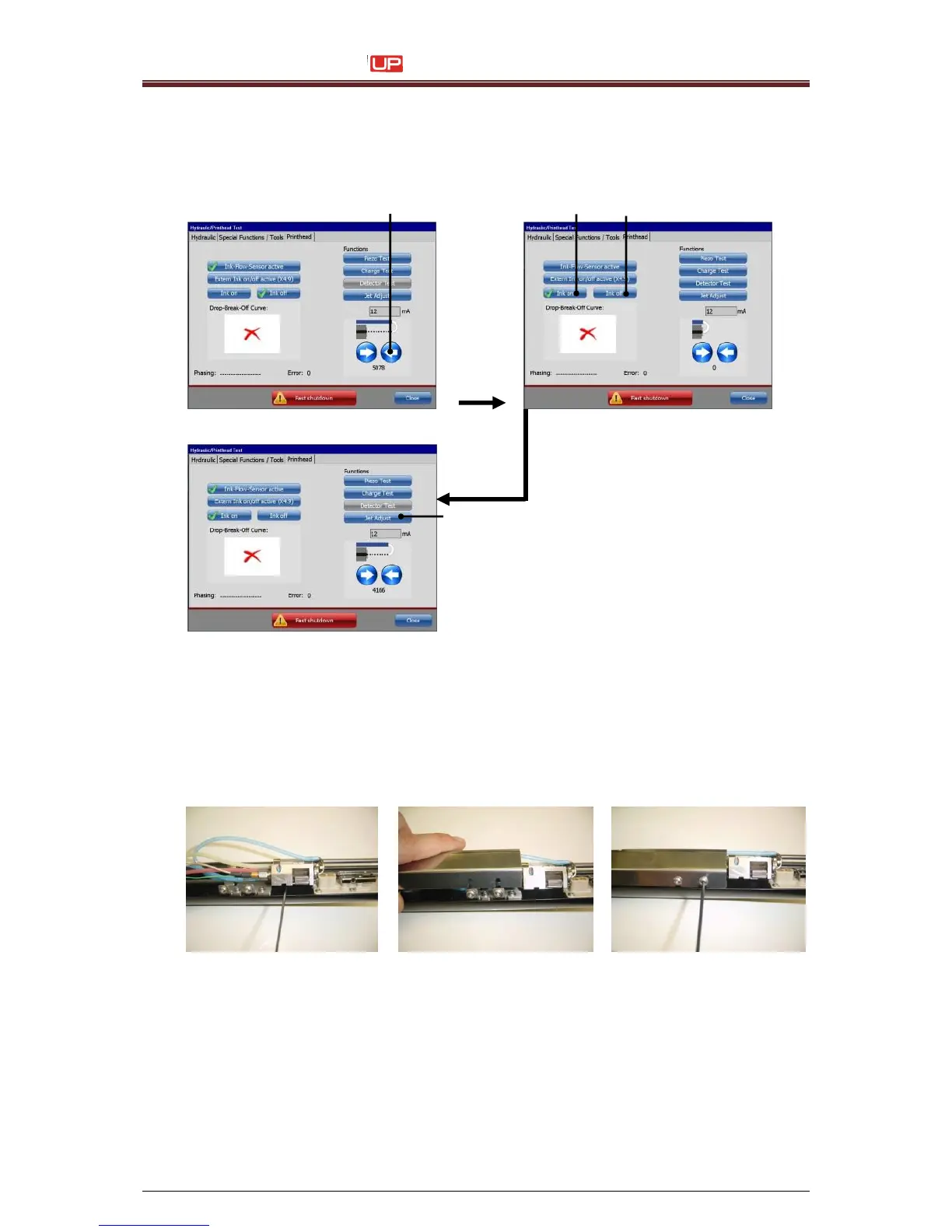

15. Close the nozzle seal completely by pressing the button <arrow> (1).
Actuate several times in quick succession the buttons <Ink on>/<Ink off> (2).
Press the button <Jet Adjust> (3) and wait until the nozzle seal is open.
Check the jet position inside the gutter.
1 – Button <arrow close nozzle>
3 – Button <Jet adjust>
2 – Buttons <Ink on>/<Ink off>
16. Close the nozzle seal again and fix the swivel-unit at the starting position. Put on and
fasten the interior cover. By putting on the interior cover do not damage any cable or
tubes.
17. Carry out a final check about the correct jet position and functionality.
