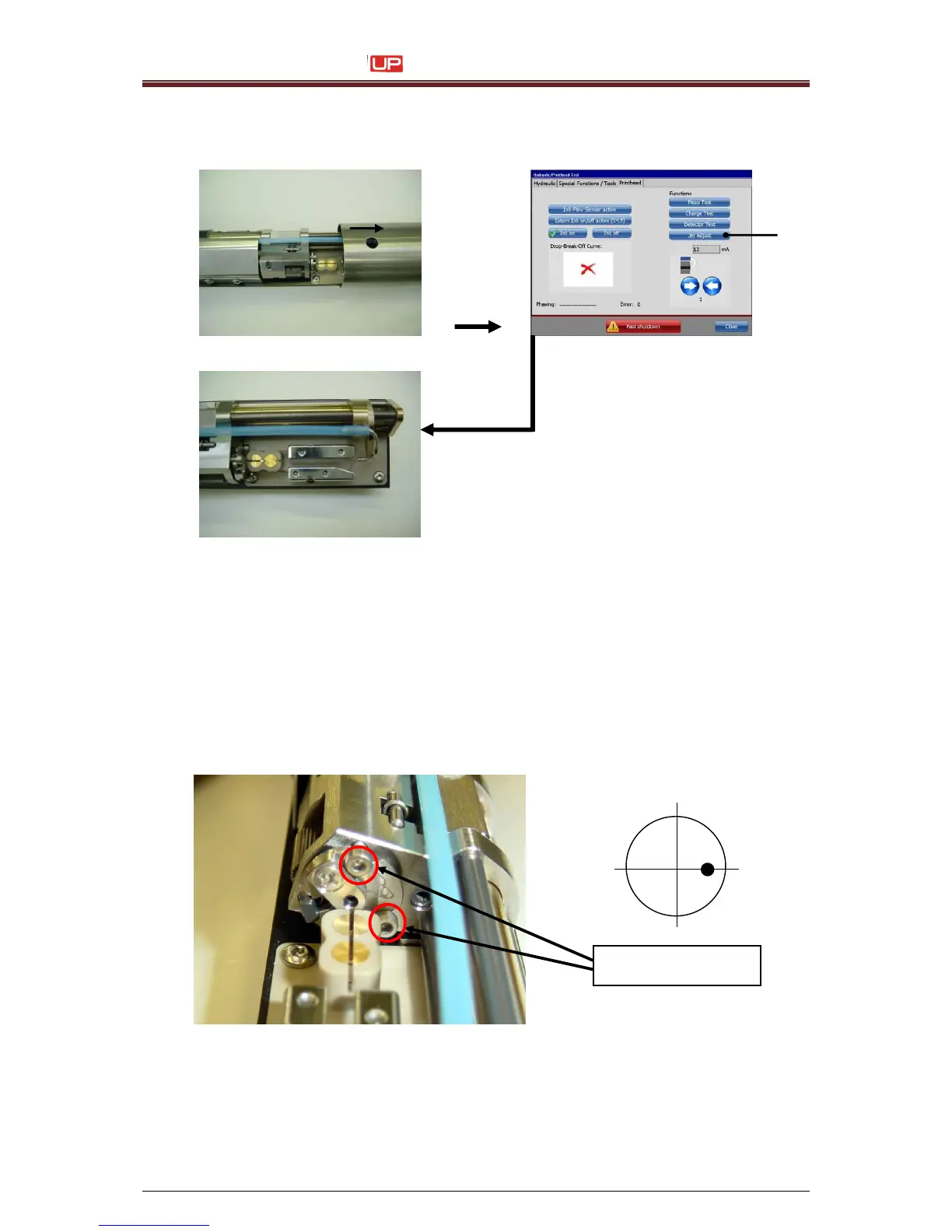

3. Remove the head cover and press the button <Jet Adjust> (1).
The nozzle seal opens automatically to the <Jet Adjust position> (4200)
1 – Button <Jet adjust>
4. Align the ink stream with the two adjusting screws according to the sketch into the
gutter tube.
Required tools:
6-fold magnifying Glasss
Allen key (SW 1,5 mm)
Attention:
It is not allowed to use a golf ball head allen key.
The screw heads could be damaged!
1
Adjusting screws
