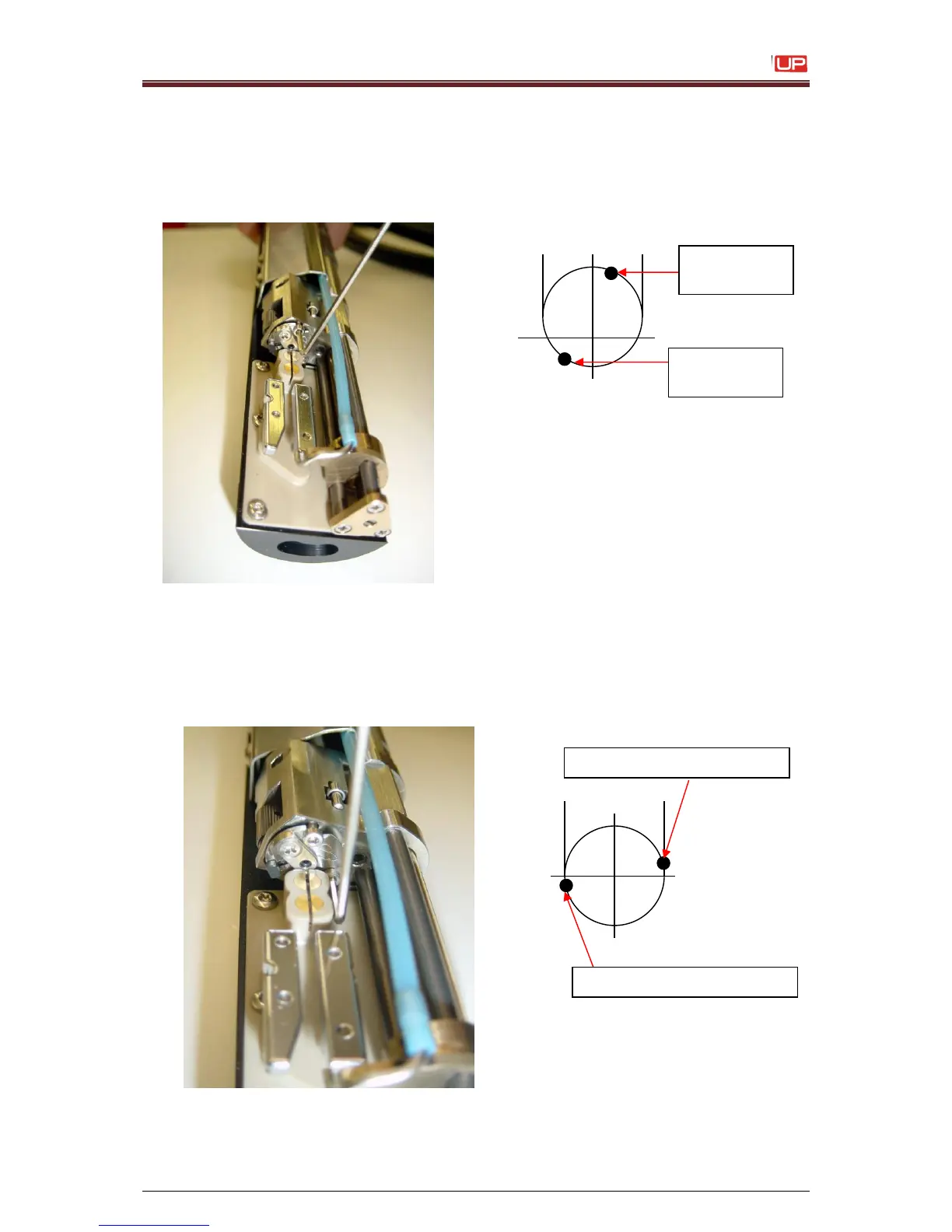

Rotating the upper adjusting screw CW, the ink stream is moving a little bit angular in
direction of the gutter tube top edge. Rotating the screw CCW, the ink stream is moving a
little bit angular in the direction bottom edge of the gutter tube.
(Viewing direction from nozzle to gutter)
Rotating the edgeways adjusting screw CW, the ink stream is moving
a little bit angular upwards in direction of left edge of gutter tube. Rotating the screw CCW,
the ink stream is moving a little bit angular downwards in direction of left edge of gutter
tube.
(Viewing direction from nozzle to gutter)
Right edge of gutter tube
