Service Manual JET3
Rev. 1.0 79

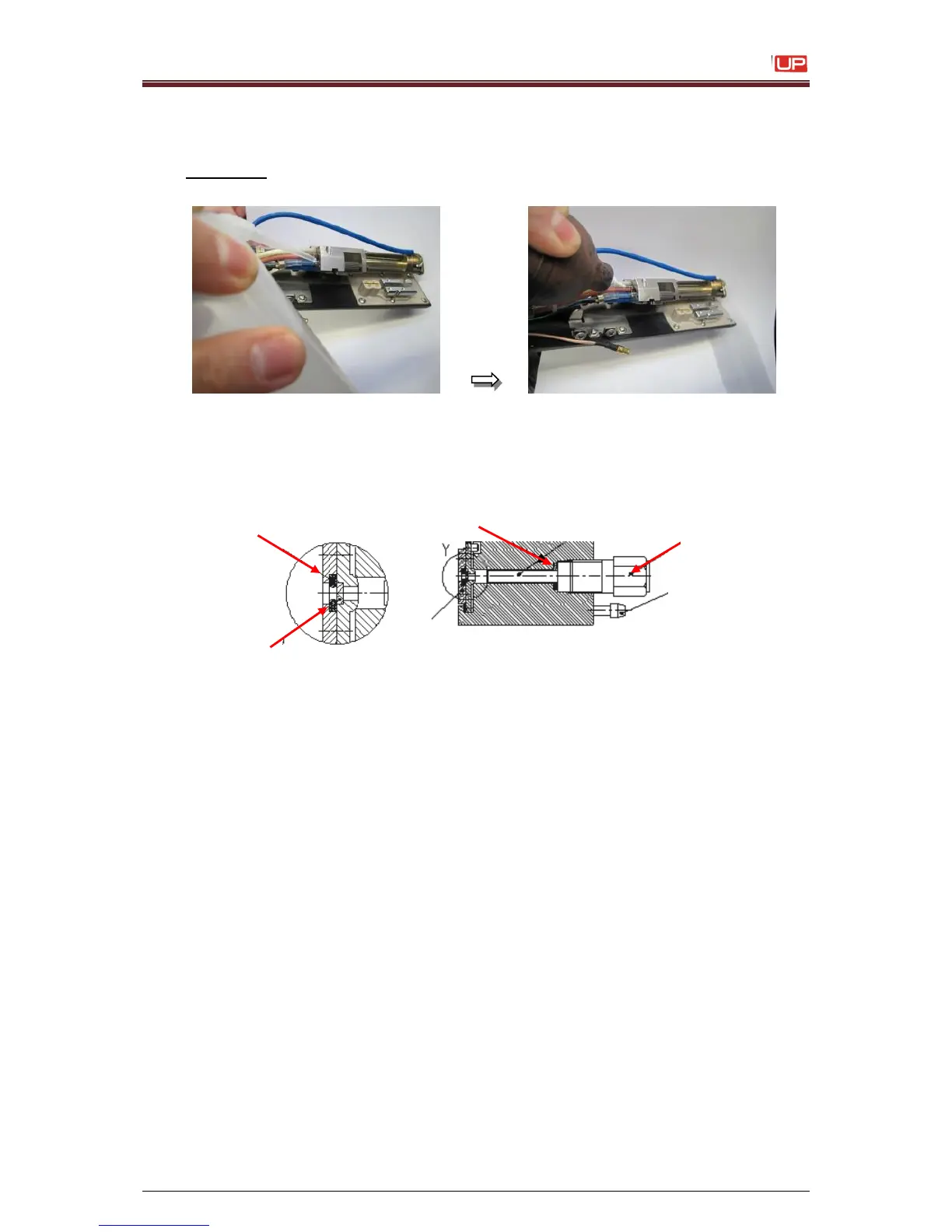

9. Flush the hole (in the drop production unit) for the oscillator with solvent and dry it with
clean compressed air.
Attention : Don’t lose the oscillator o-ring during drying with compressed air.
Be sure that no dirt is coming into the open system.
10. Pay attention to the right installation position from the oscillator o-ring.
(drawing for a 96KHz unit)
!!! Don’t forget the adapter ring and the second o-ring in a 64 KHz unit !!!
Attention: Do not bent the oscillator otherwise it could be damaged!!!
11. Clean the new oscillator. Install the oscillator and tighten it well only by hand.
Attention:
It is prohibited to flush the oscillator with solvent!!
Solvent could enter inside and damage the piezo!!
Nozzle plate
Nozzle seal
Oscillator O-Ring
Oscillator
