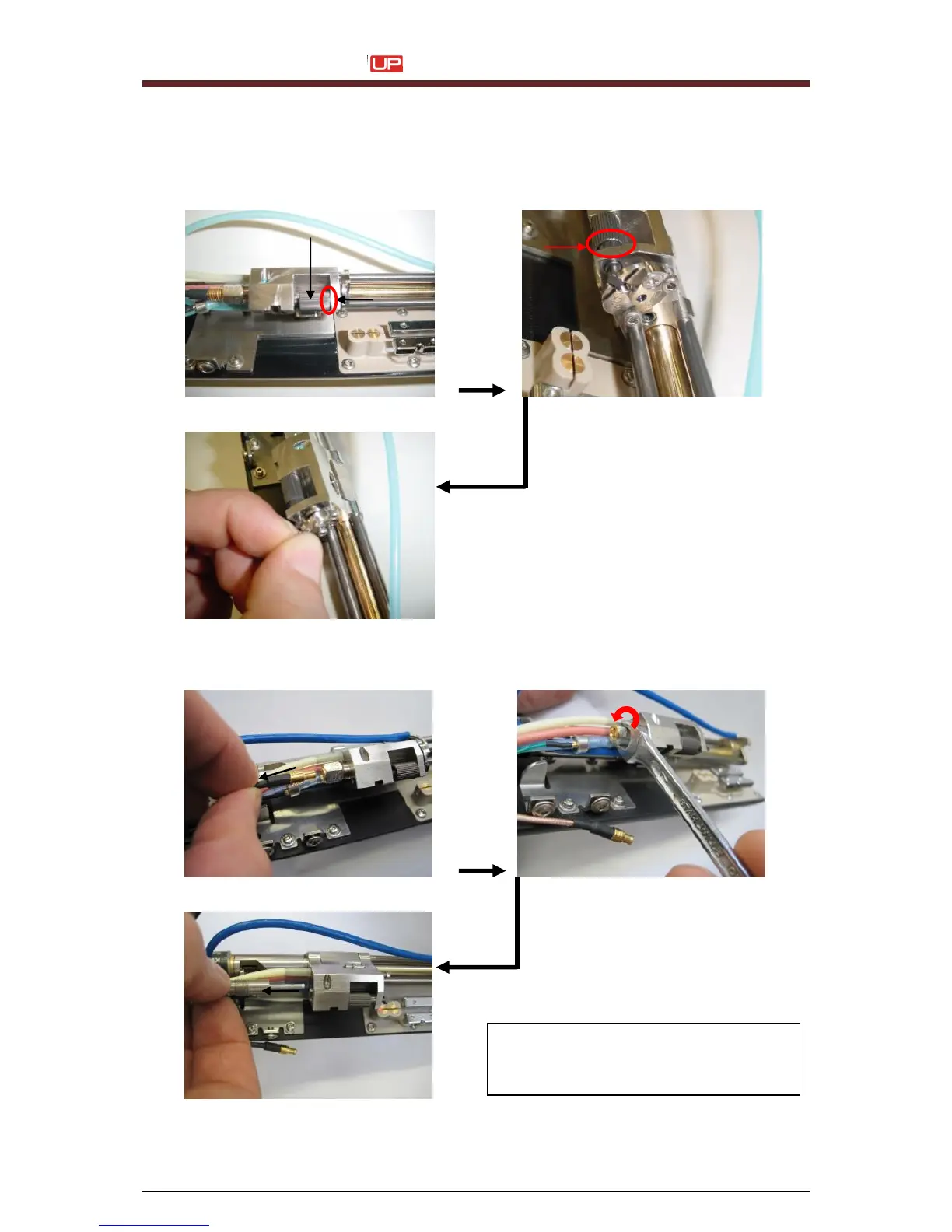

For the next steps you have to incline the head a little bit down, that the ink or
solvent can leak out of the print head!
7. Wind back the knurled-head screw to stop until the cross bolt centre turns on 90°. Is
the nozzle adjustment released you can take out the nozzle.
8. Unplug the oscillator and release it with a 7mm open-end wrench key.
Unscrew the oscillator by hand and take it out of the drop production unit.
Attention:
Do not bent the oscillator
otherwise it could be damaged!!!
