Service Manual JET3
Rev. 1.0 95

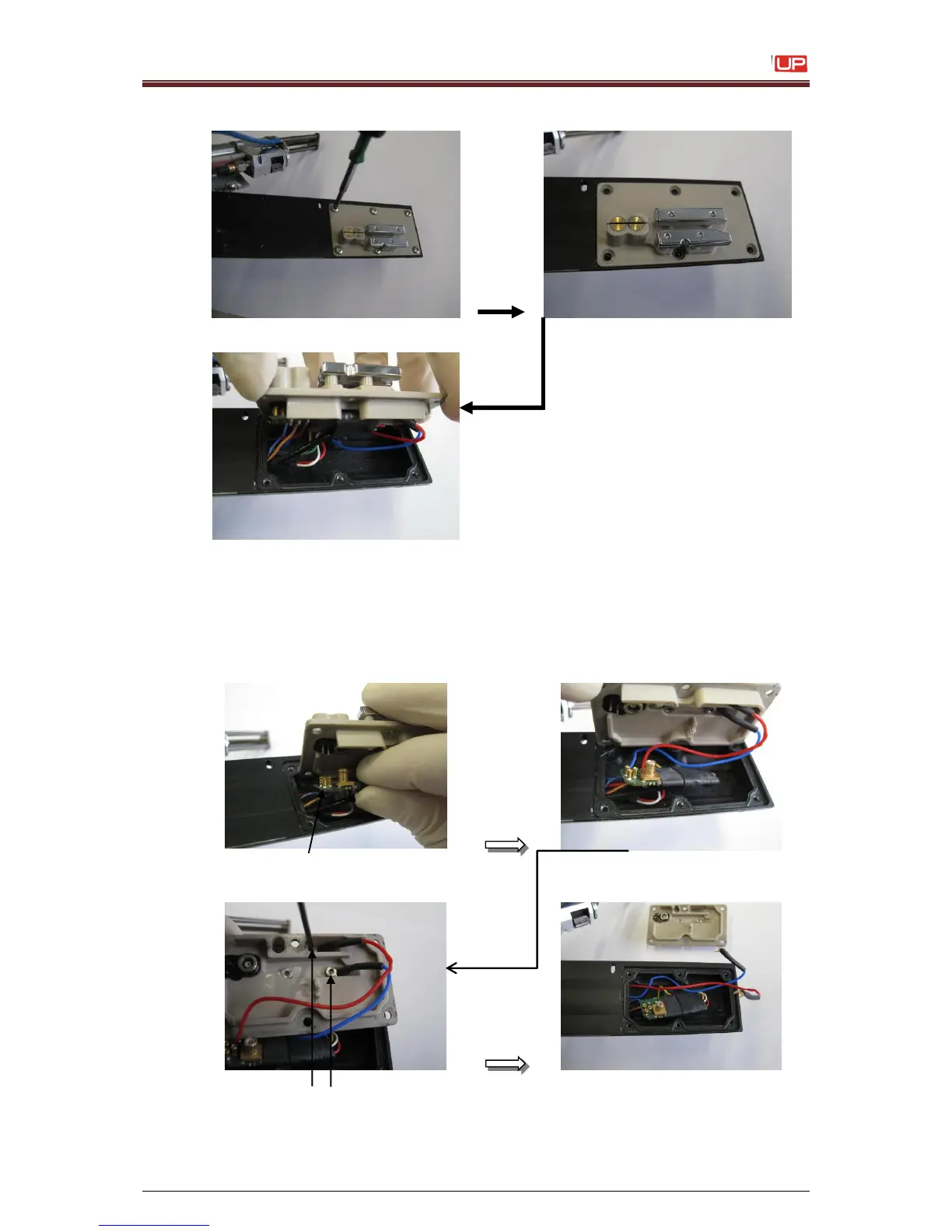

5. Remove the electrode block
Remove the 6 Torx screws with a Torx screwdriver (T8) and unplug the electrode
block from the print head!
6. Disconnect the electrode block from the print head electronic parts.
Remove the fixing screws from the HV-Cable with a Allen key (SW 1,5 mm)!
Unplug the charge board!
