Leica mojo 3D User Manual

Leica mojo3D, mojo3D Enhancements 315
2. Connect the AS400 bus cable to the Port Expansion Cable.

If the electric steer kit is also installed then the AS400 bus cable must be
connected to the QuickSteer bus cable which will be connected to the port
expansion cable.
3. Connect the bus power cable to a clean 12 volt power source and to the AS400
bus cable.

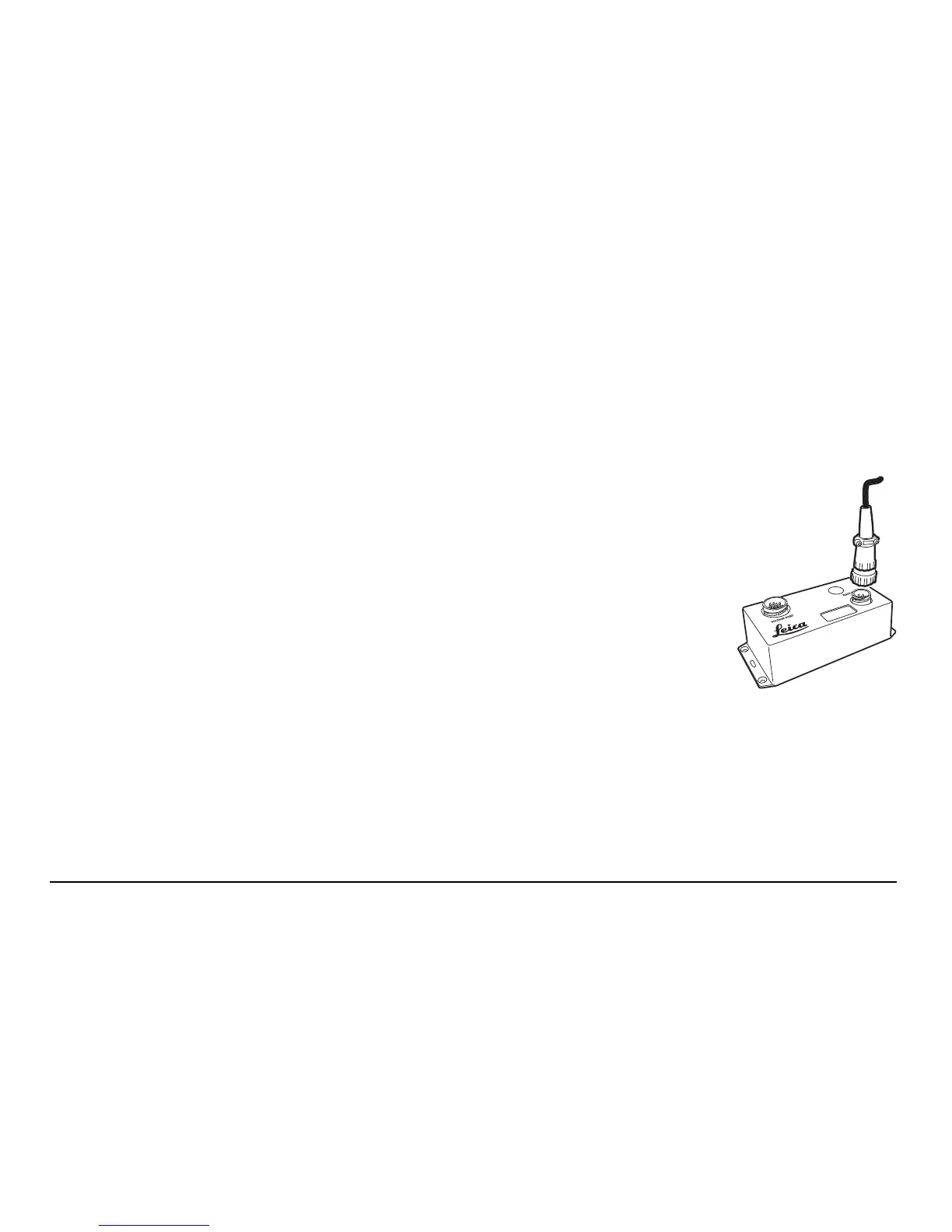

4. Connect the circular connector on the AS400 bus
cable to the AS400.
5. Connect the controller interface cable to the remaining port on the AS400.
6. Installation instructions for the controller interface cable will be supplied with the
cable which is available separately.
mojo3D_015

Leica mojo 3D Specifications

General

Brand	Leica
Model	mojo 3D
Category	GPS
Language	English
