ToremovetheIntelligentDiagnosticsModule,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage87.
3.Removethefrontbezel.See“Removingandreinstallingthefrontbezel”onpage89.
4.LocatetheIntelligentDiagnosticsModule.See“IntelligentDiagnosticsModule”onpage18.
5.Removethefrontsystemfan(s).See“Replacingthefrontsystemfan”onpage157.
6.DisconnectthesignalcableoftheIntelligentDiagnosticsModulefromtheIntelligentDiagnosticsModule
connectoronthesystemboard.See“Systemboardcomponents”onpage45.
7.Ifnecessary,removeanypartsordisconnectanycablesthatmightimpedeyouraccesstothesignal
cableoftheIntelligentDiagnosticsModule.Notethecableroutingandthenreleasethesignalcableof
theIntelligentDiagnosticsModulefromanycableclipsortiesinthechassis.
8.Removethescrew1onthechassisthatsecurestheIntelligentDiagnosticsModule.Then,carefully
removetheIntelligentDiagnosticsModulefromthechassisandpullthesignalcableoftheIntelligent
DiagnosticsModuleoutoftheholeinthechassis.

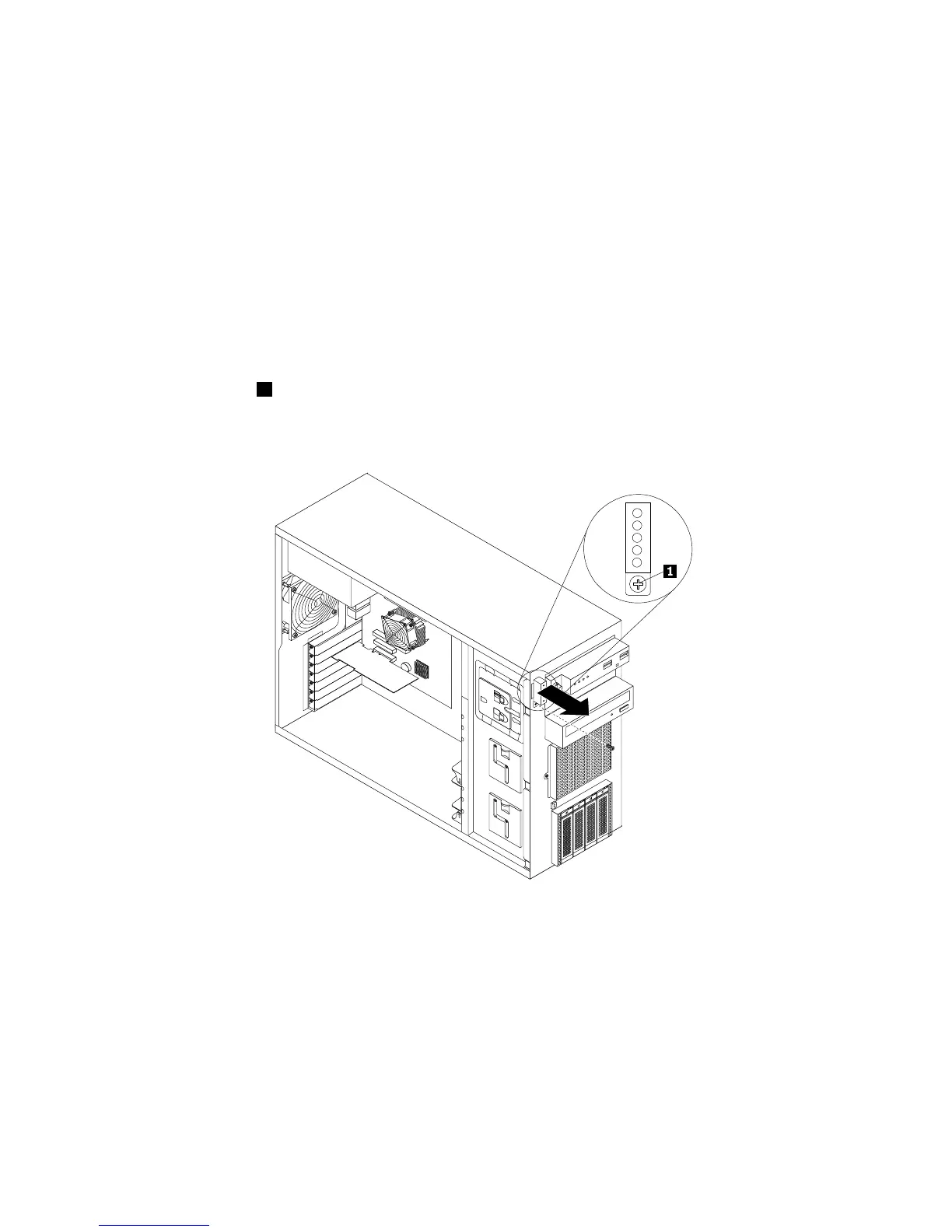

Figure61.RemovingtheIntelligentDiagnosticsModule
9.DisconnectthesignalcablefromtherearoftheIntelligentDiagnosticsModule.
10.Reinstallthefrontsystemfan(s).See“Replacingthefrontsystemfan”onpage157.
11.Reinstallthefrontbezel.See“Removingandreinstallingthefrontbezel”onpage89.
12.IfyouareinstructedtoreturntheoldIntelligentDiagnosticsModule,followallpackaginginstructions
anduseanypackagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
