8.ConnecttheotherendofthesignalcabletotheIntelligentDiagnosticsModuleconnectoronthe
systemboard.See“Systemboardcomponents”onpage45.Then,properlyroutethesignalcable
oftheIntelligentDiagnosticsModule.Youmightneedtosecurethesignalcablewithcableclipsor
tiesinthechassis.

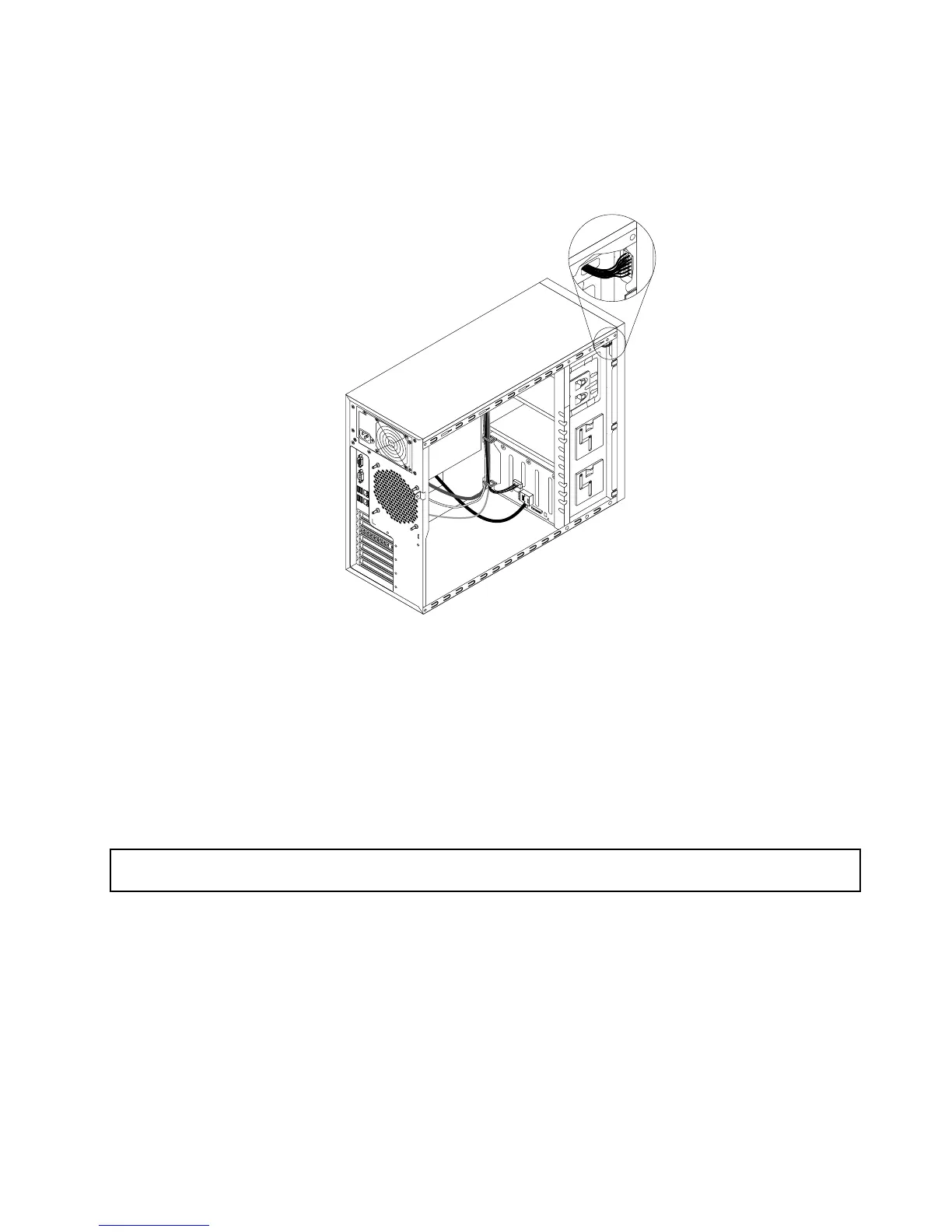

Figure60.Cablerouting
9.Reinstallthefrontsystemfan(s).See“Replacingthefrontsystemfan”onpage157.
10.Reinstallthefrontbezel.See“Removingandreinstallingthefrontbezel”onpage89.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage170
.
RemovingtheIntelligentDiagnosticsModule
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”
onpageiiiand“Guidelines”onpage85.
ThistopicprovidesinstructionsonhowtoremovetheIntelligentDiagnosticsModule.
ThistopicappliesonlytoservermodelsthatcomewiththeIntelligentDiagnosticsModule.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
1.Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationinthistopic.
2.IfyouremovetheIntelligentDiagnosticsModule,theserverwilllosethediagnosticLEDsontheIDM
panel.
Chapter6.Installing,removing,orreplacinghardware121
