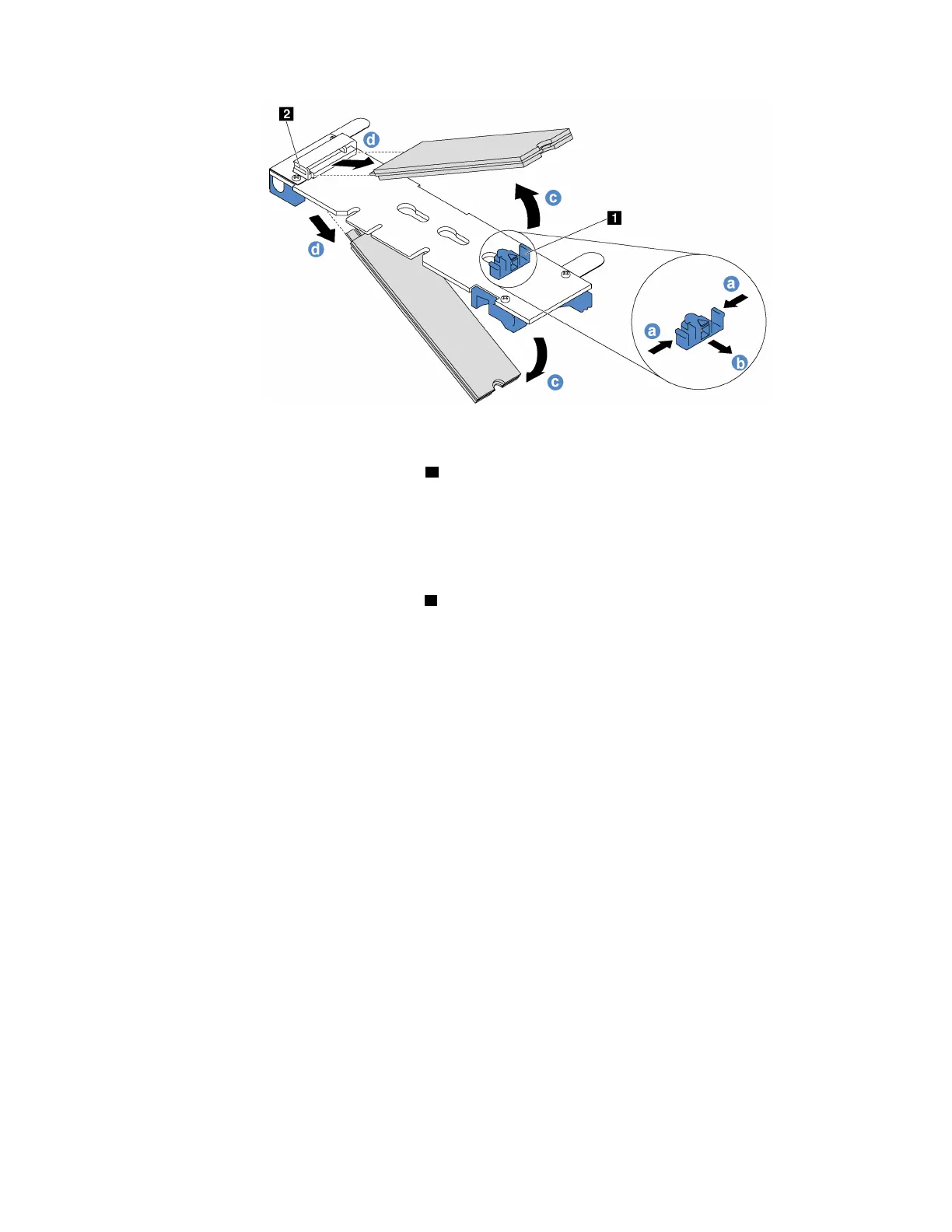

Figure 81. M.2 drive removal
a. Press both sides of the retainer 1 .
b. Slide the retainer backward to loosen the M.2 drive from the M.2 backplane.
Note: If the M.2 backplane has two M.2 drives, they will both release outward when you slide
the retainer backward.
c. Rotate the M.2 drive away from the M.2 backplane.
d. Pull it away from the connector
2 at an angle of approximately 30 degrees.
If you are instructed to return the old M.2 backplane or M.2 drive, follow all packaging instructions and use
any packaging materials that are provided.
Chapter 3. Hardware replacement procedures 115
