Lenovo ThinkSystem SR530 - Install a System Fan

Install a system fan
Use this information to install a system fan.
“Read the
installation
Guidelines” on
page 45
“Power off
the server
for this task”
on page 14
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 48
Before installing a system fan, touch the static-protective package that contains the new system fan to any
unpainted surface on the outside of the server. Then, take the new system fan out of the package and place
it on a static-protective surface.
To install a system fan, complete the following steps:
Watch the procedure. A video of the installation process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-AQrHuDWK6L3KtHWc6maY_O
• Youku: http://list.youku.com/albumlist/show/id_50437162

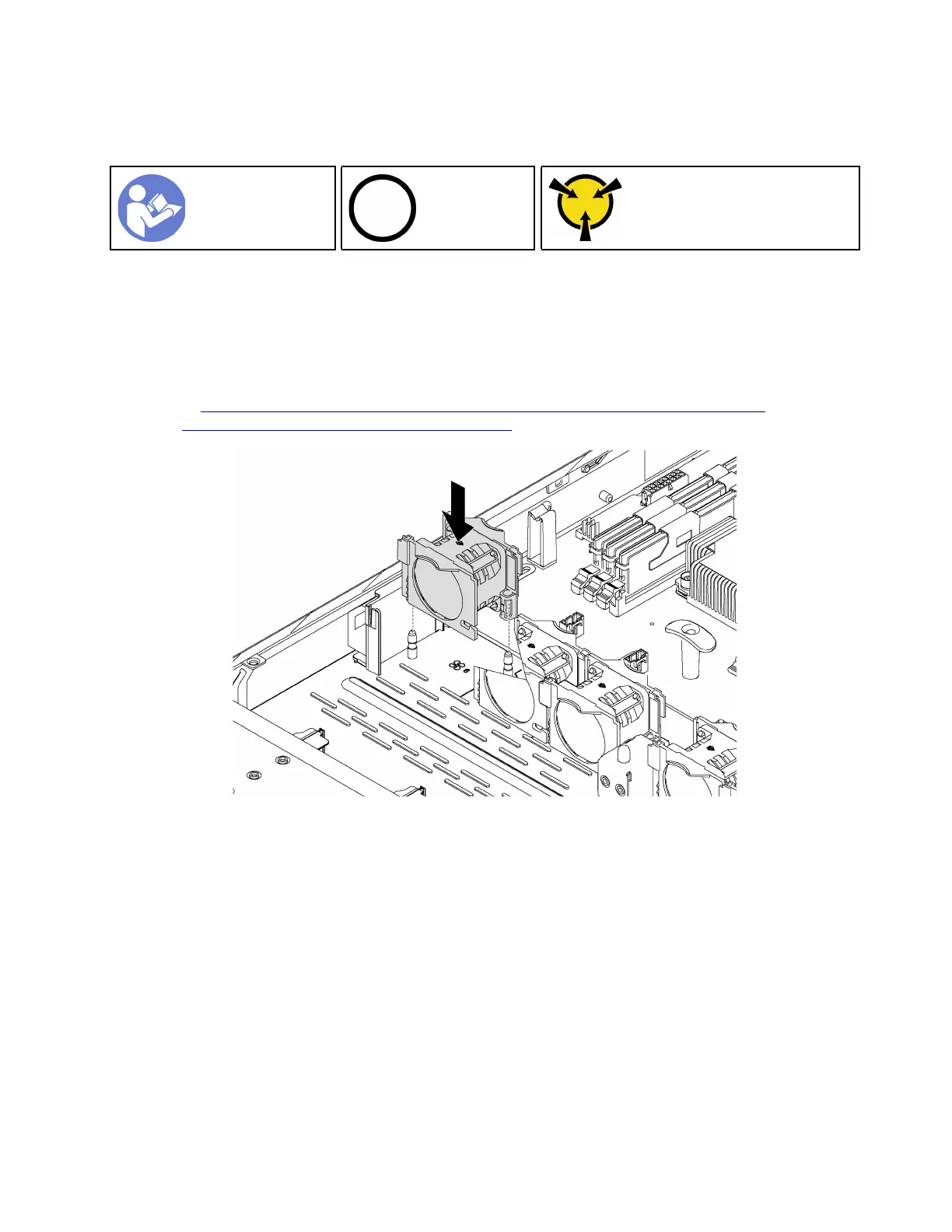

Figure 39. System fan installation
Step 1. Align the support holes of the system fan with the two pins in the chassis, and press it straight
down until it is seated into place.
Note: Ensure that the system fan cable is at the side next to the system board.
Step 2. Connect the system fan cable to the system fan connector on the system board.
After installing the system fan, complete the parts replacement. See “Complete the parts replacement” on
page 144.
Chapter 3. Hardware replacement procedures 69
