Install the LOM adapter
Use this information to install the LOM adapter.
“Read the
installation
Guidelines” on
page 45
“Power off
the server
for this task”
on page 14
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 48
Before installing the LOM adapter:
1. If riser 1 assembly is installed, remove it to access the LOM adapter slot.
2. Touch the static-protective package that contains the new LOM adapter to any unpainted surface on the
outside of the server. Then, take the new LOM adapter out of the package and place it on a static-
protective surface.
To install the LOM adapter, complete the following steps:
Watch the procedure. A video of the installation process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-AQrHuDWK6L3KtHWc6maY_O
• Youku: http://list.youku.com/albumlist/show/id_50437162

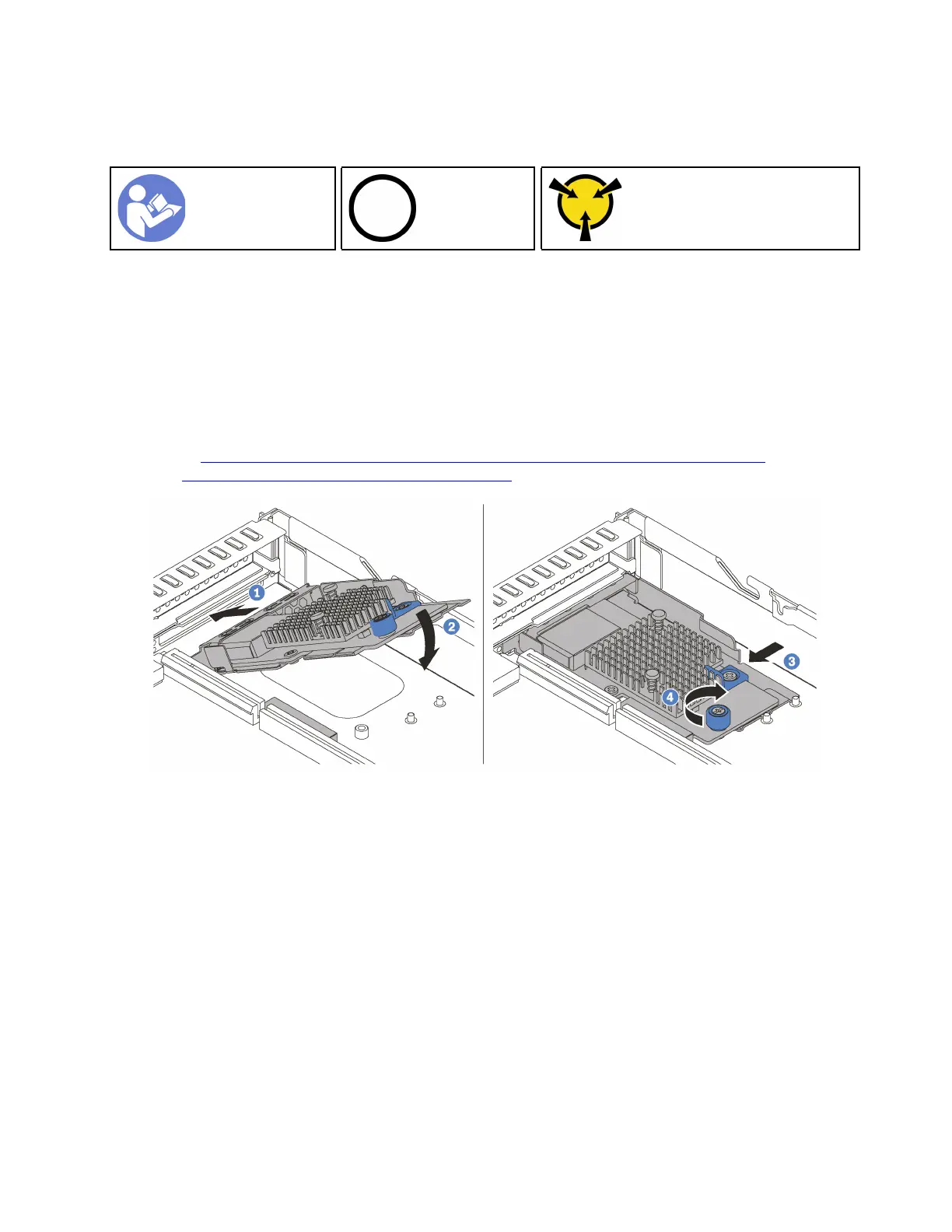

Figure 91. LOM adapter installation
Step 1. Insert the LOM adapter into the rear of the chassis at an angle as shown.
Step 2. Lower the LOM adapter and slide it to the rear of the chassis until the LOM adapter stops.
Step 3. Push the LOM adapter as shown to insert it into the connector on the system board.
Step 4. Tighten the thumbscrew to secure the LOM adapter.
After installing the LOM adapter, complete the parts replacement. See “Complete the parts replacement” on
page 144.
Chapter 3. Hardware replacement procedures 125
