System board components
The illustration in this section shows the component locations on the system board.

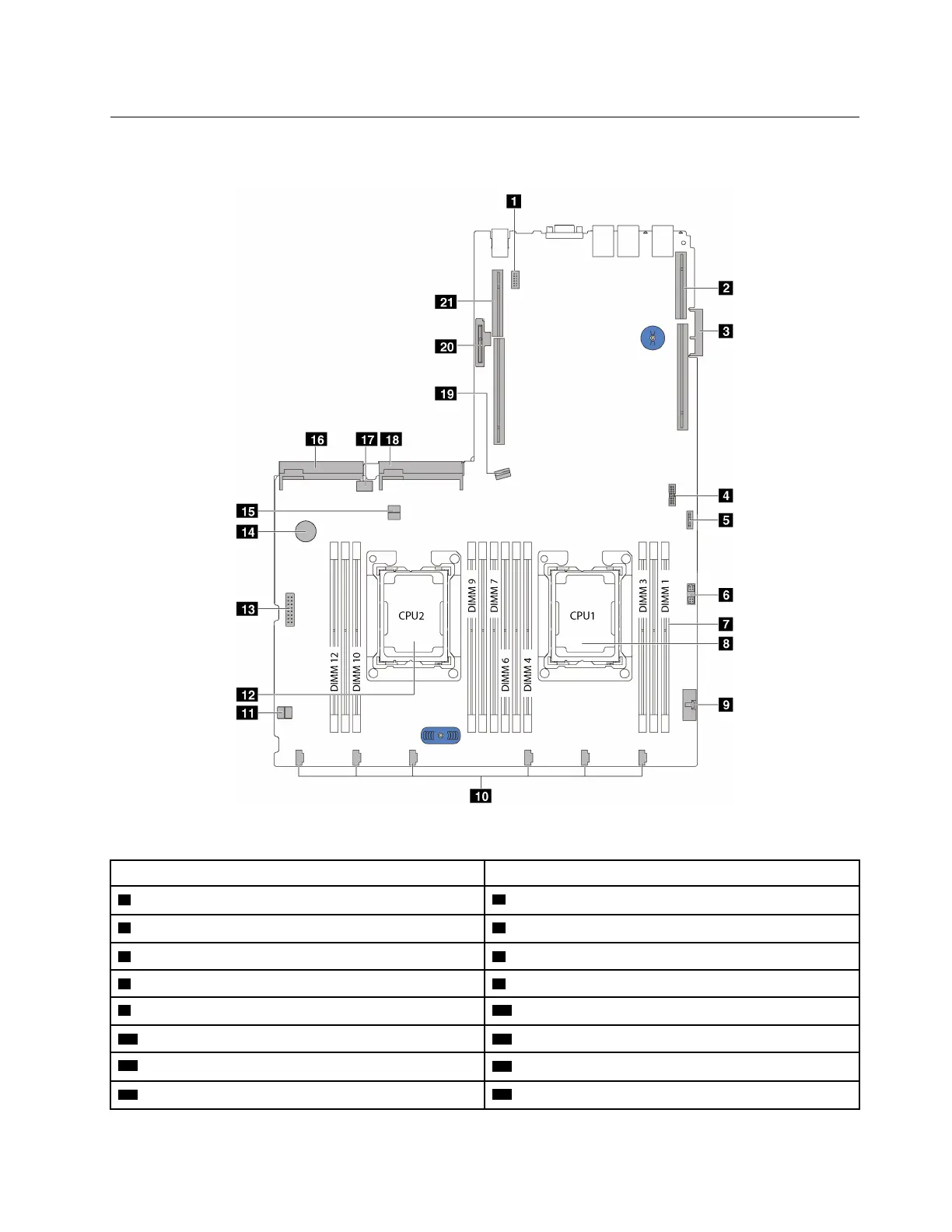

Figure 10. System board components
Callout Callout
1 Serial-port-module connector
2 Riser 1 slot
3 LOM adapter connector 4 TCM
1
/TPM
2
connector (for Chinese Mainland only)
5 Front USB connector 6 Front VGA connector
7 DIMM slots 8 Processor 1 socket
9 Operator-information-panel connector 10 System fan connectors
11 Cable retainer
12 Processor 2 socket
13 Backplane power connector
14 CMOS battery
15 Cable retainer
16 Power supply 2 connector
Chapter 2. Server components 27
