RAID super capacitor module
Use this section to understand the cable routing for RAID super capacitor modules.
Your server supports up to two RAID super capacitor modules.

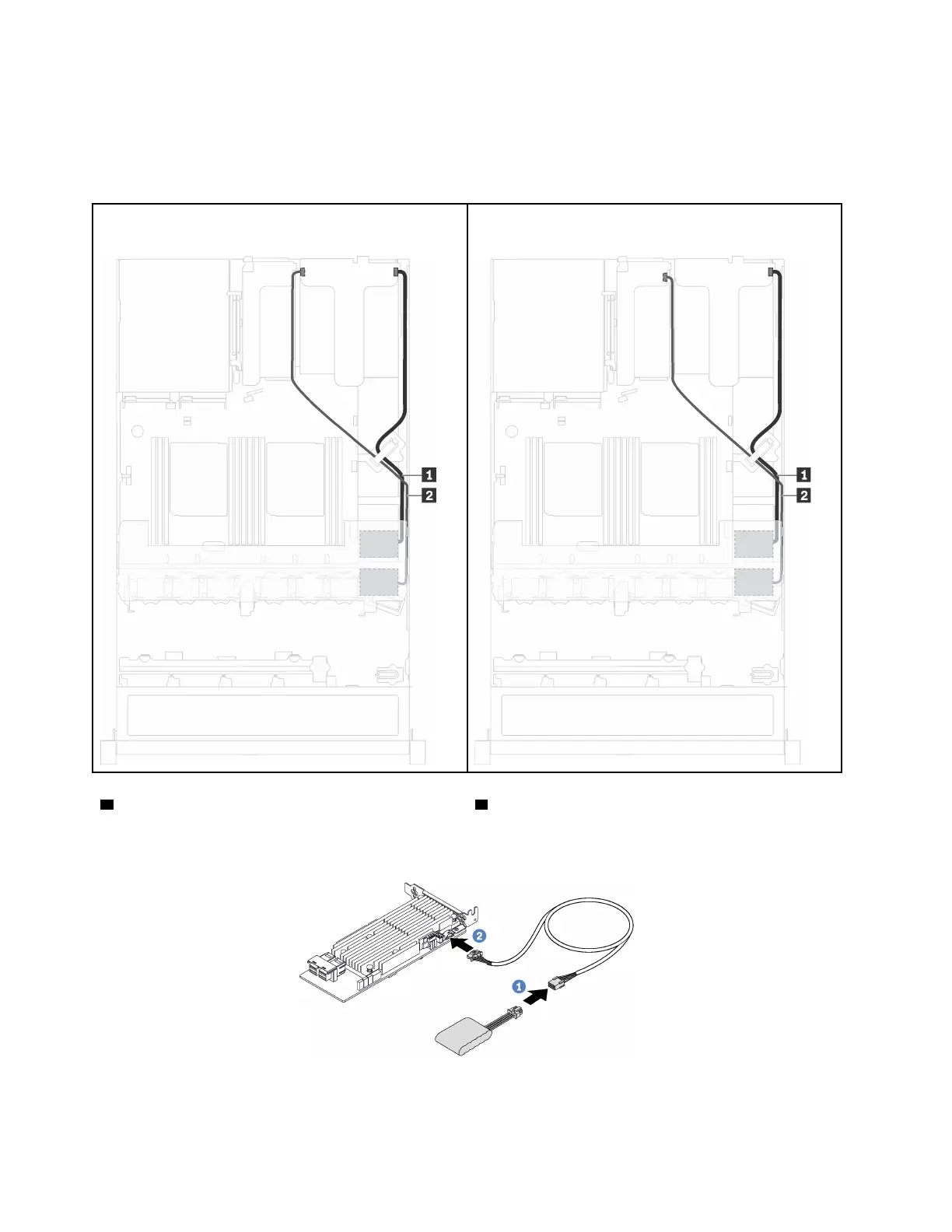

Scenario 1: the second RAID adapter in PCIe slot 2 Scenario 2: the second RAID adapter in PCIe slot 3
1 Cable routing for RAID super capacitor module 1 2 Cable routing for RAID super capacitor module 2
An extension cable is provided for each RAID super capacitor module for connection.
Figure 16. Connecting the RAID super capacitor module to the RAID adapter
36 ThinkSystem SR530 Maintenance Manual
