Step 2. Remove the 7mm drive backplane on the top.

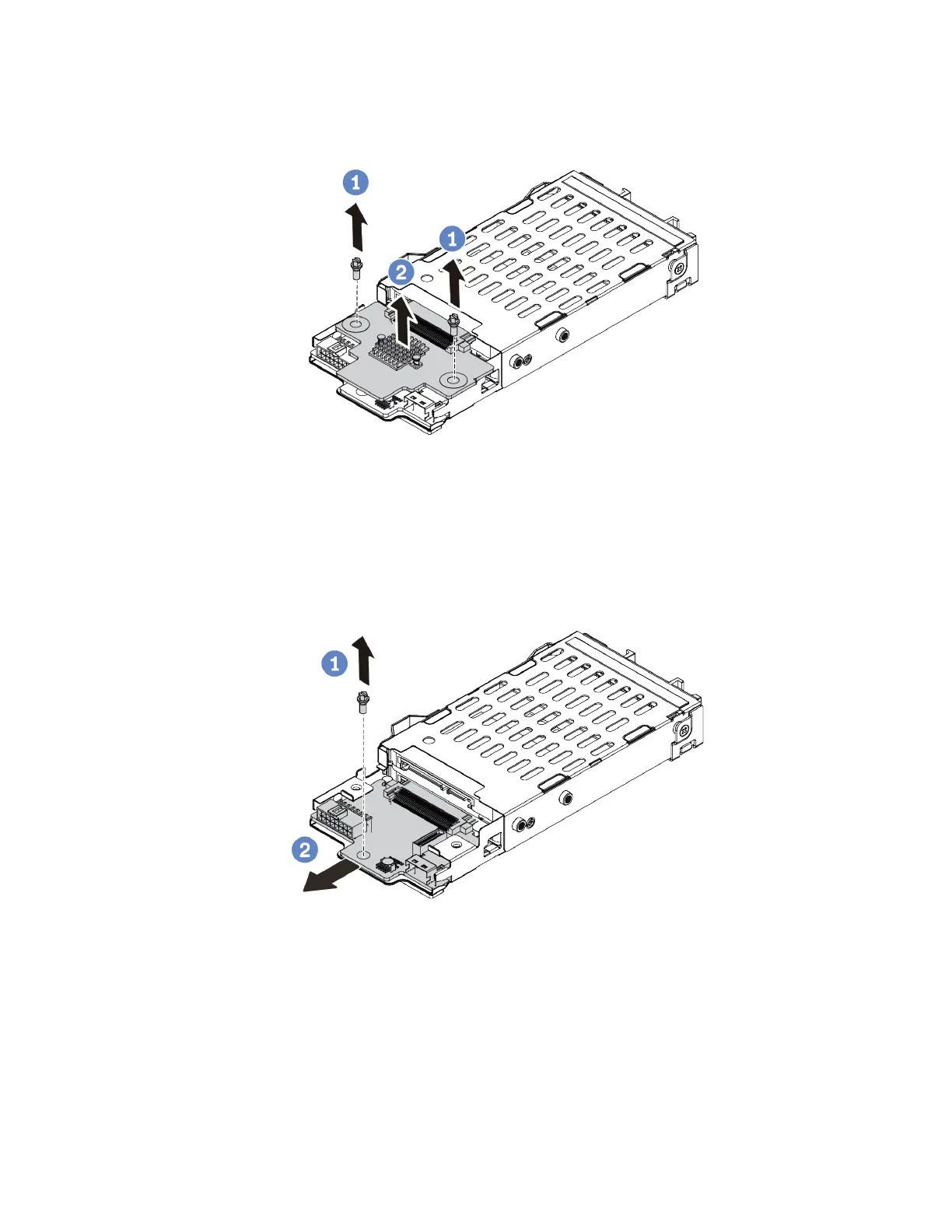

Figure 46. 7mm drive backplane removal (top)
a. Remove the two screws as shown.
b. Vertically lift the backplane up and put it aside.
Step 3. Remove the 7mm drive backplane at the bottom.
Figure 47. 7mm drive backplane removal (bottom)
a. Remove the screw as shown.
b. Remove the backplane horizontally from the cage as shown.
After you finish
106 ThinkSystem SR630 V2 Maintenance Manual
