Procedure
Step 1. Remove the top cover. See “Remove the top cover” on page 220.
Step 2. Remove any components that may impede access to the internal CFF HBA/RAID adapter.
Step 3. Disconnect all cables from the internal CFF HBA/RAID adapter.
Step 4. Lift the release pin, slightly slide the internal CFF HBA/RAID adapter as shown, and carefully lift it
out of the chassis.

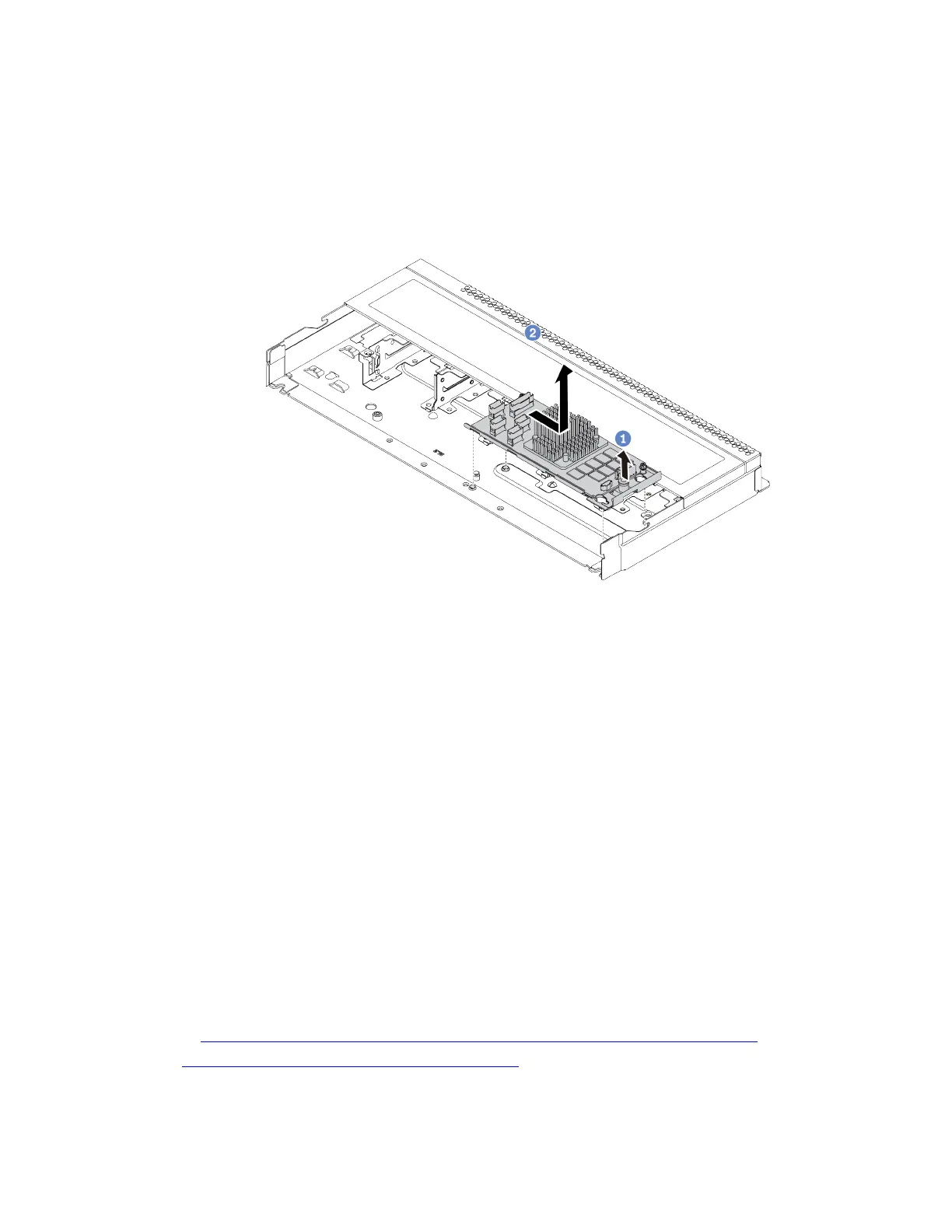

Figure 82. Internal CFF HBA/RAID adapter removal
After you finish
If you are instructed to return the old internal CFF HBA/RAID adapter, follow all packaging instructions and
use any packaging materials that are provided.
Install the internal CFF HBA/RAID adapter
Use this information to install the internal CFF HBA/RAID adapter.
About this task
Attention:
• Read “Installation guidelines” on page 83 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-Cmxb8e4L4PvMQ7J5PxvuOK
• Youku: https://list.youku.com/albumlist/show/id_59643656
Procedure
