Procedure
Step 1. Remove the top cover. See “Remove the top cover” on page 220.
Step 2. Disconnect the cable of the RAID super capacitor module.
Step 3. Remove the RAID super capacitor module on the chassis.

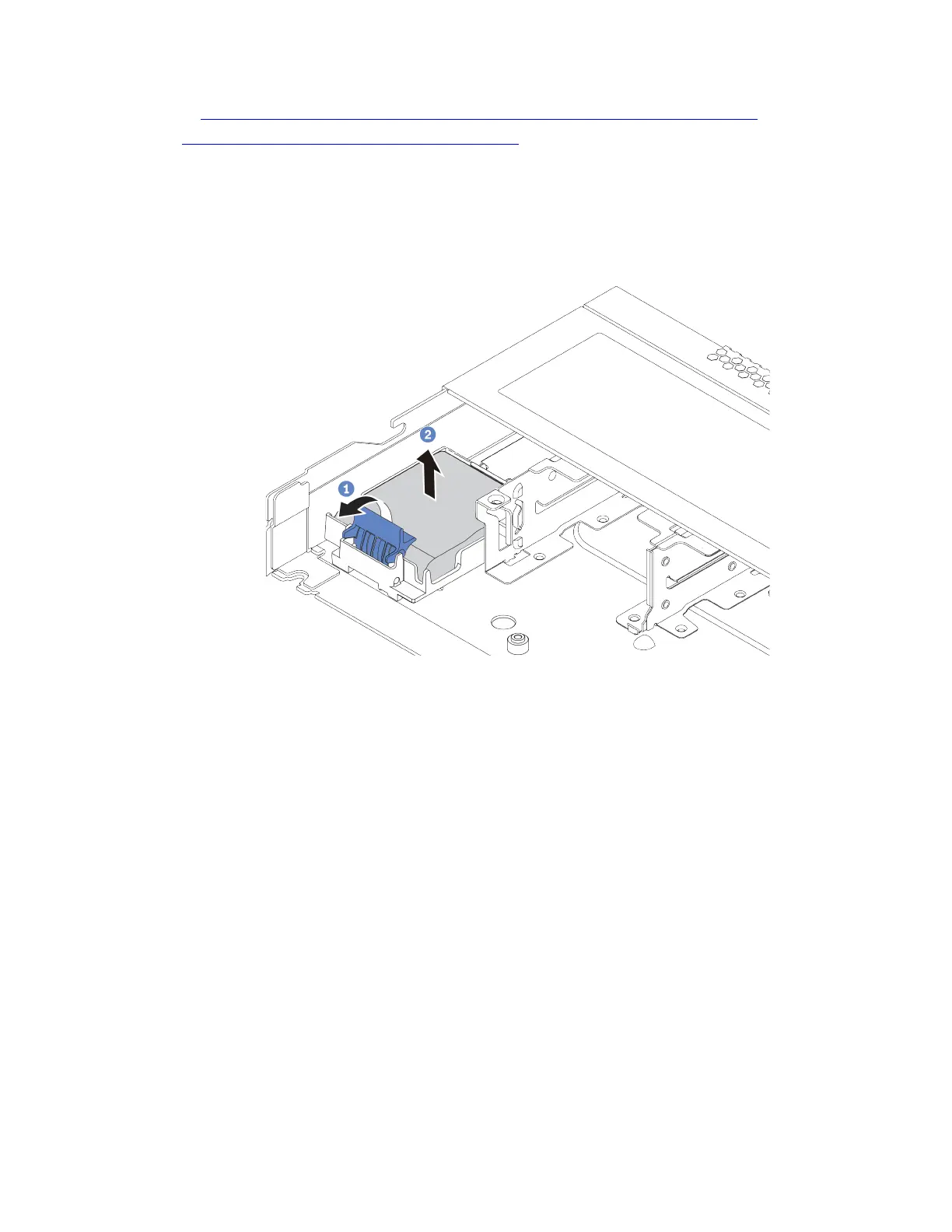

Figure 115. Removal of the RAID super capacitor module on the chassis
a. Open the retention clip on the holder of the RAID super capacitor module.
b. Take the RAID super capacitor module out of the holder.
Chapter 4. Hardware replacement procedures 191
