A video for this task is available at:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-Cmxb8e4L4PvMQ7J5PxvuOK
• Youku: https://list.youku.com/albumlist/show/id_59643656
Procedure
Step 1. Touch the static-protective package that contains the system board to any unpainted surface on
the outside of the server. Then, take the system board out of the package and place it on a static-
protective surface.
Step 2. Install the system board to the server.

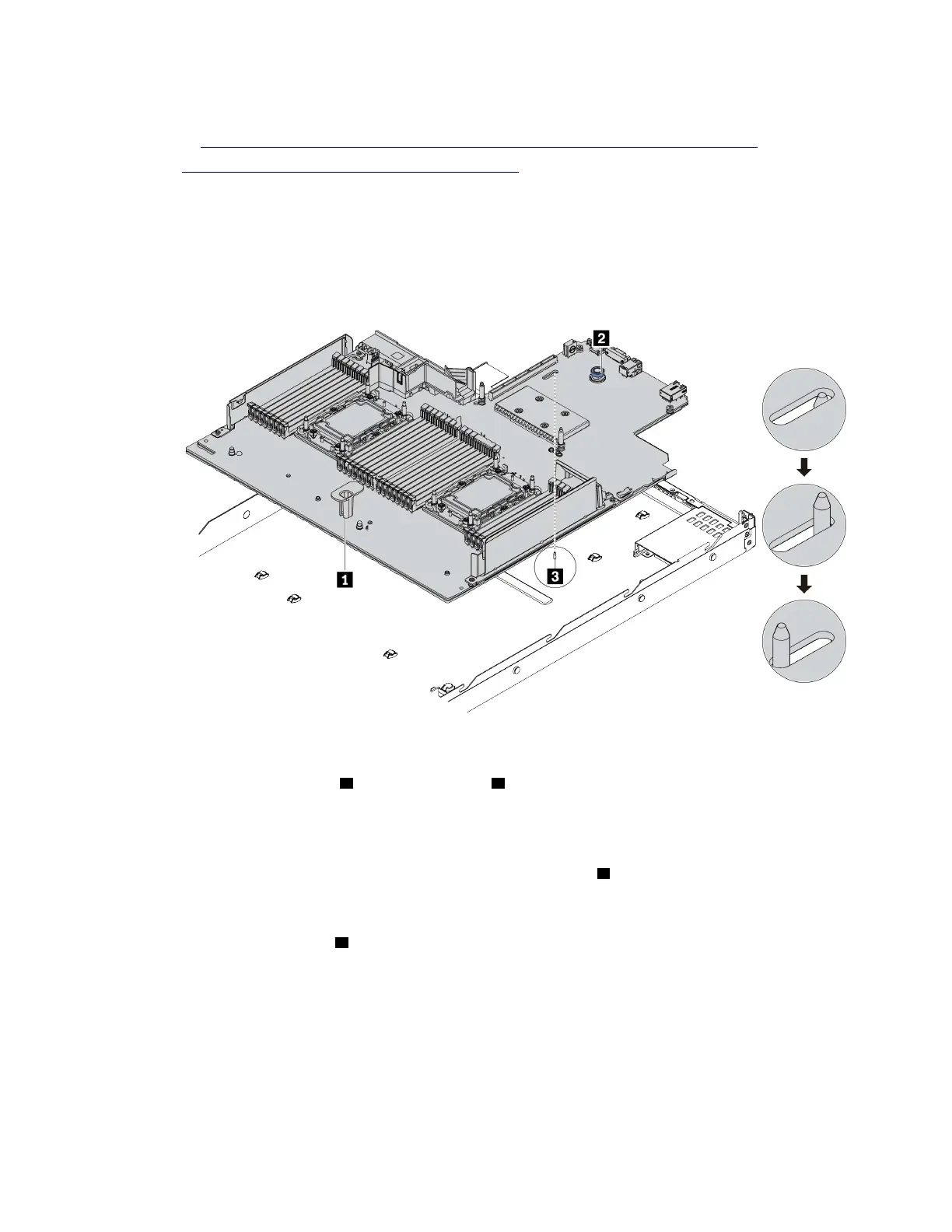

Figure 143. System board installation
a. Hold the lift handle 1 and the release pin 2 at the same time to lower the system board into
the chassis.
b. Slide the system board to the rear of the server until the system board snaps into position.
Ensure that:
• The new system board is engaged by the locating pin
3 on the chassis.
• The rear connectors on the new system board are inserted into the corresponding holes in
the rear panel.
• The release pin
2 secures the system board in place.
After you finish
1. Install any components that you have removed from the failing system board.
• “Processor and heat sink” on page 176
• “Memory modules” on page 148
• “System fans” on page 209
Chapter 4. Hardware replacement procedures 215
