Table 8. Components on the front of the server
Callout Callout
1 Diagnostics panel
2 USB 3.2 Gen 1 (5Gbps) connector
3 External diagnostics connector
4 XClarity Controller USB connector
5 VGA connector (optional) 6 Rack latch (right)
7 Pull-out information tab
8 Drive filler (1)
9 Drive bays (16) 10 Rack latch (left)
Note: For more information about each component, see “Front components overview” on page 25.

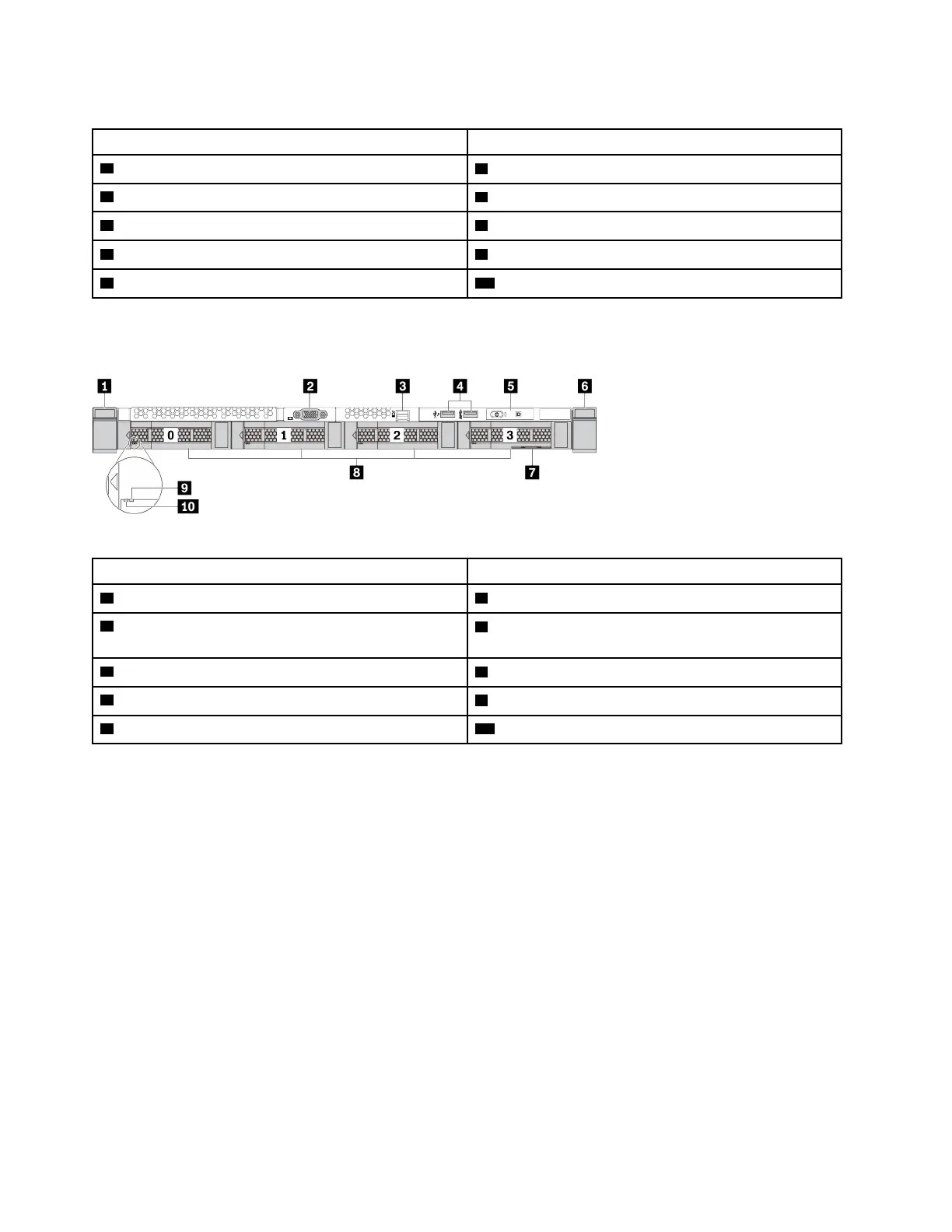

Server model with four 3.5-inch drive bays
Table 9. Components on the front of the server
Callout Callout
1 Rack latch (left) 2 VGA connector (optional)
3 External diagnostics connector
4 XClarity Controller USB connector and USB 3.2 Gen 1
(5Gbps) connector
5 Diagnostics panel
6 Rack latch (right)
7 Pull-out information tab
8 Drive bays (4)
9 Drive status LED 10 Drive activity LED
Note: For more information about each component, see “Front components overview” on page 25.
