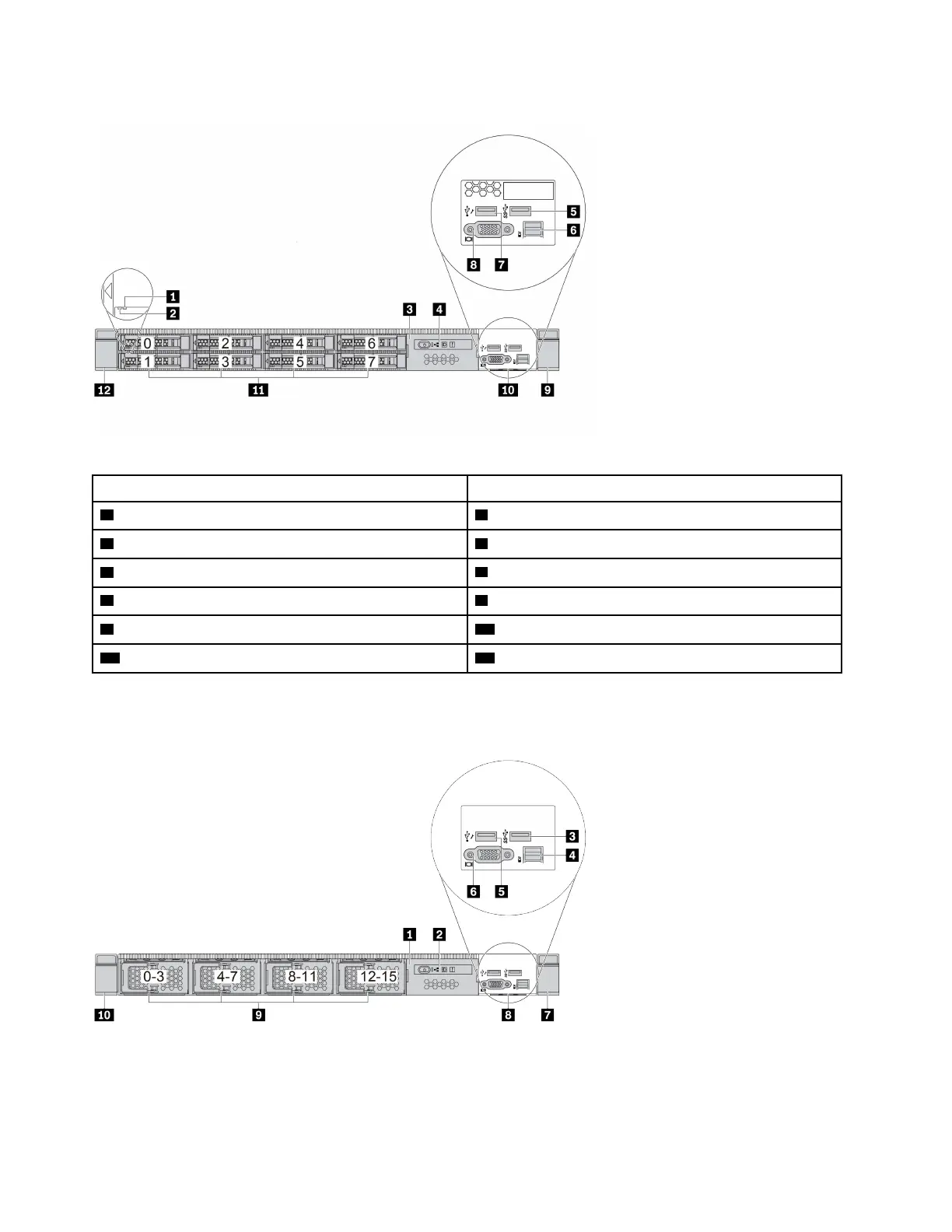

Server model with eight 2.5-inch drive bays (with LCD diagnostics panel assembly)
Table 12. Components on the front of the server
Callout Callout
1 Drive status LED 2 Drive activity LED
3 LCD diagnostics panel assembly 4 LCD diagnostics panel
5 USB 3.2 Gen 1 (5Gbps) connector
6 External diagnostics connector
7 XClarity Controller USB connector 8 VGA connector (optional)
9 Rack latch (right)
10 Pull-out information tab
11 Drive bays (8) 12 Rack latch (left)
Note: For more information about each component, see “Front components overview” on page 25.
Server model with 16 EDSFF drives (with LCD diagnostics panel assembly)
24 ThinkSystem SR630 V2 Maintenance Manual
