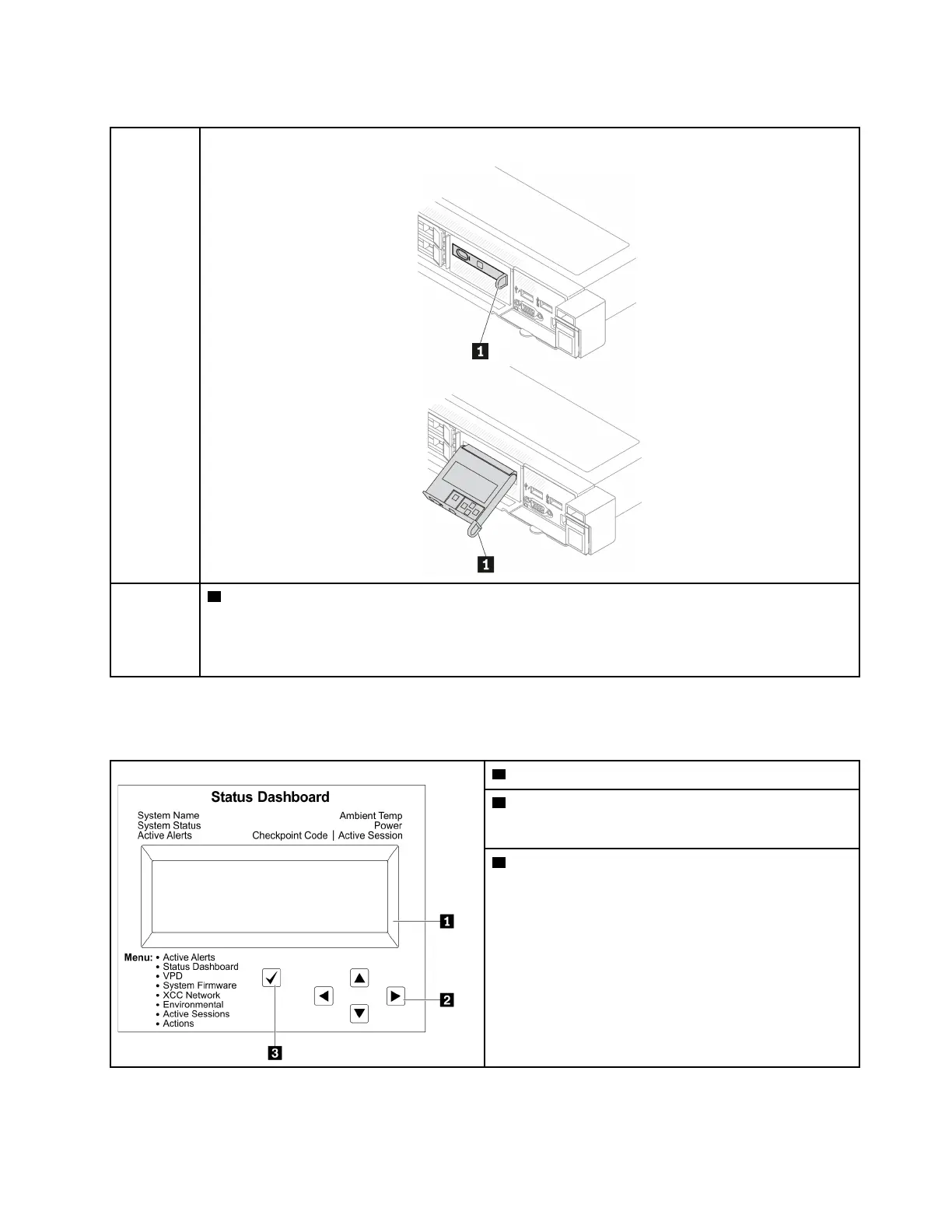

Location of the LCD diagnostics panel
Location
The LCD diagnostics panel is attached to the front of the server.
Callout
1 The handle with which the panel can be pulled out from the server.
Notes:
• The panel can be pushed in or pulled out regardless of the system power status.
• When pulling it out, do it gently to avoid damage.
Display panel overview
The diagnostics device consists of an LCD display and 5 navigation buttons.
1 LCD display
2 Scroll buttons (up/down/left/right)
Press the scroll buttons to locate and select system
information.
3 Select button
Press the select button to select from the options in the
menu.
