Function block library
7-34
SHB9300CRV EN 2.0
AND6
&
AND6-IN1
AND6-IN2
AND6-IN3
AND6-OUT
C 1176/1
C 1176/2
C 1176/3
C 1175/1
C 1175/2
C 1175/3

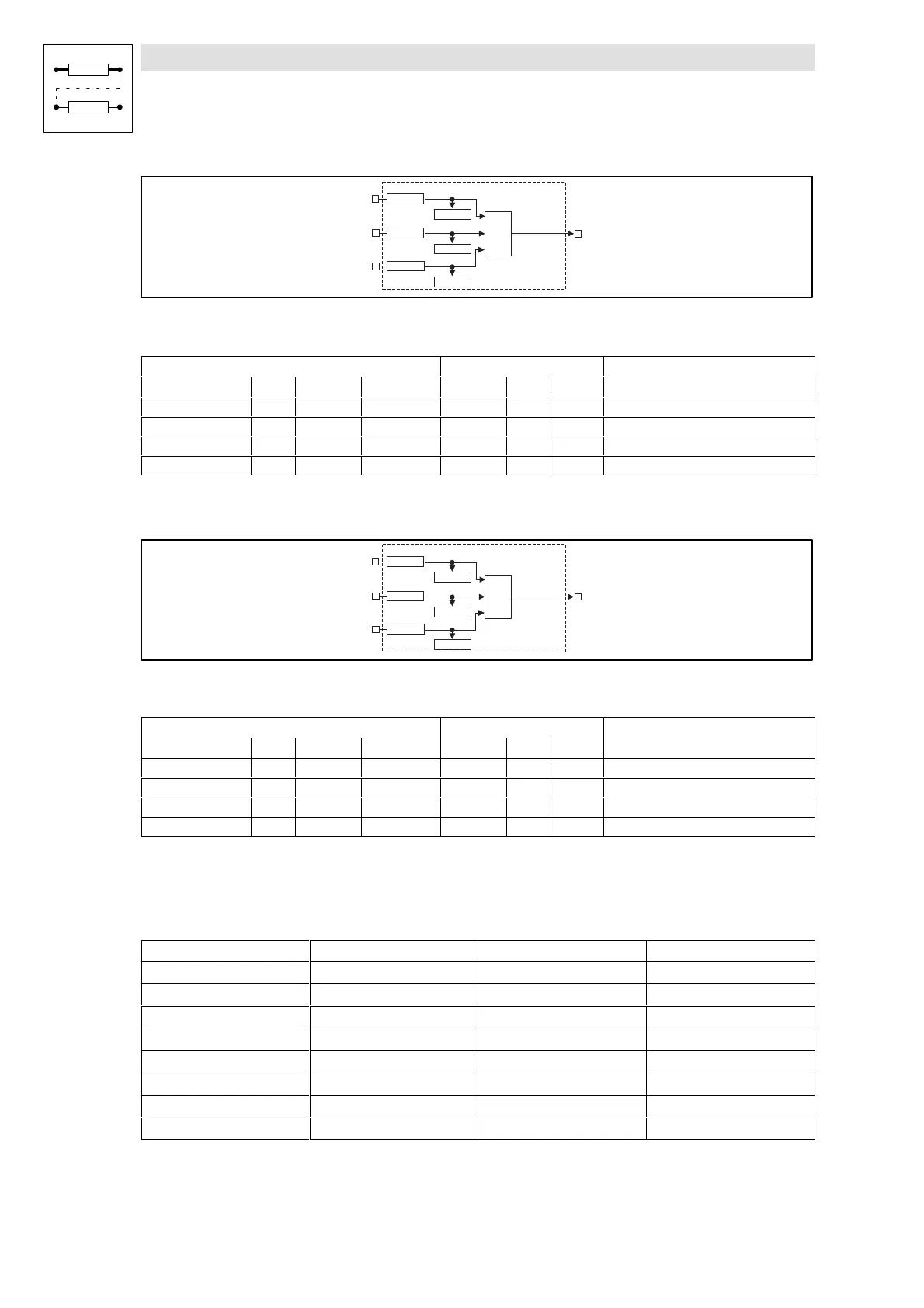

Fig. 7-19 AND function (AND6)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND6-IN1 d C1176/1 bin C1175/1 2 1000 -
AND6-IN2 d C1176/2 bin C1175/2 2 1000 -
AND6-IN3 d C1176/3 bin C1175/3 2 1000 -
AND6-OUT d - - - - - -
AND7
&
AND7-IN1
AND7-IN2
AND7-IN3
AND7-OUT
C 1179/1
C 1179/2
C 1179/3
C 1178/1
C 1178/2
C 1178/3
Fig. 7-20 AND function (AND7)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND7-IN1 d C1179/1 bin C1178/1 2 1000 -
AND7-IN2 d C1179/2 bin C1178/2 2 1000 -
AND7-IN3 d C1179/3 bin C1178/3 2 1000 -
AND7-OUT d - - - - - -
Function
ANDx-IN1 ANDx-IN2 ANDx-IN3 ANDx-OUT
0 0 0 0
1 0 0 0
0 1 0 0
1 1 0 0
0 0 1 0
1 0 1 0
0 1 1 0
1 1 1 1
The function corresponds to a series connection of normally-open contacts in a contactor control.
