Function block library
7-35

SHB9300CRV EN 2.0
ANDx-IN1
ANDx-IN2
ANDx-IN3
ANDx-OUT

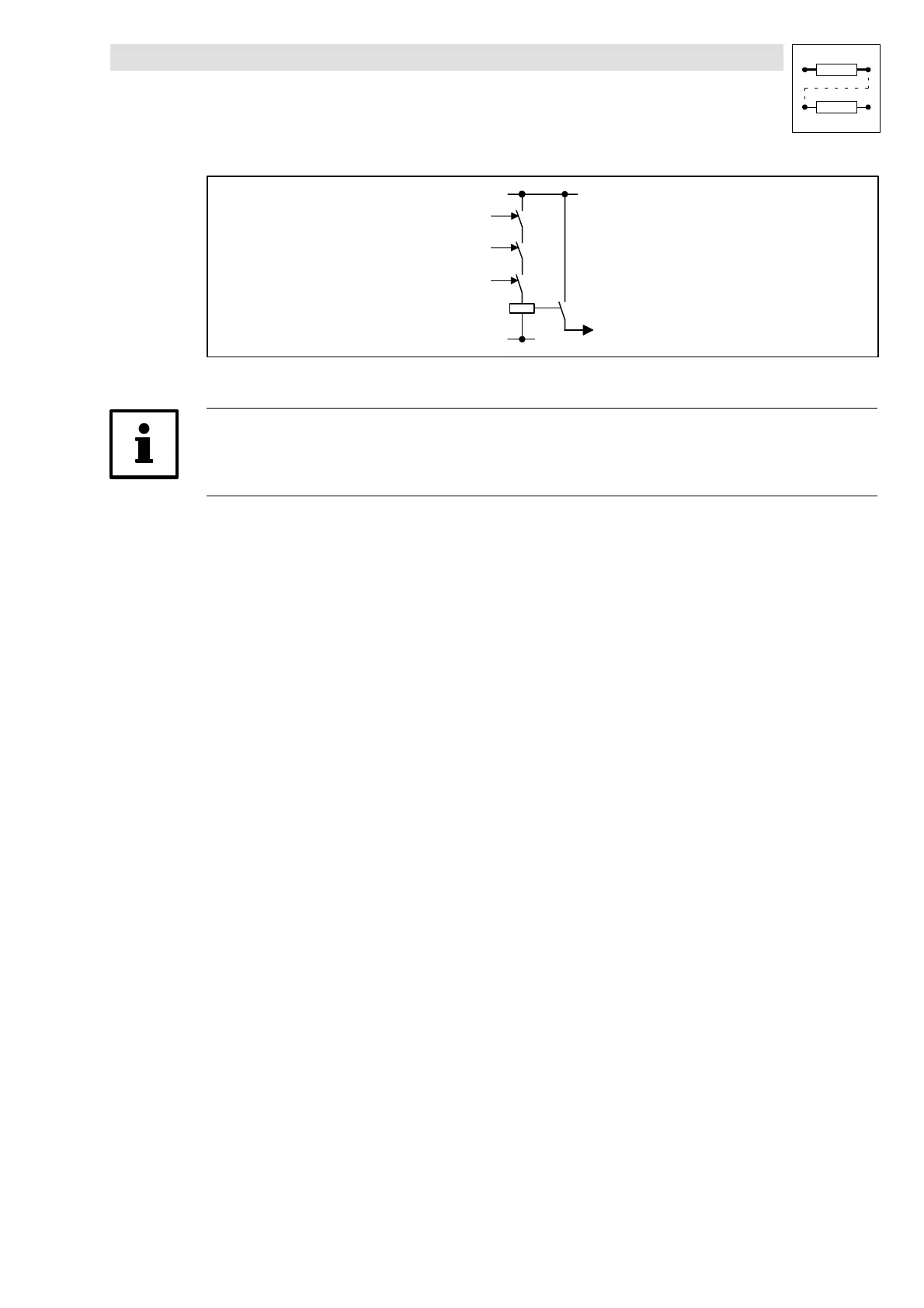

Fig. 7-21 AND function as a series connection of normally-open contacts
Tip!
If only two inputs are required, use the inputs ANDx-IN1 and ANDx-IN2. Assign the input ANDx-IN3
to the signal source FIXED1 via the configuration code.
