3 Product description
3.2 Identification
12
Lenze · EMF2180IB communication module (EthernetCAN) · Communication Manual · DMS 5.1 EN · 09/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

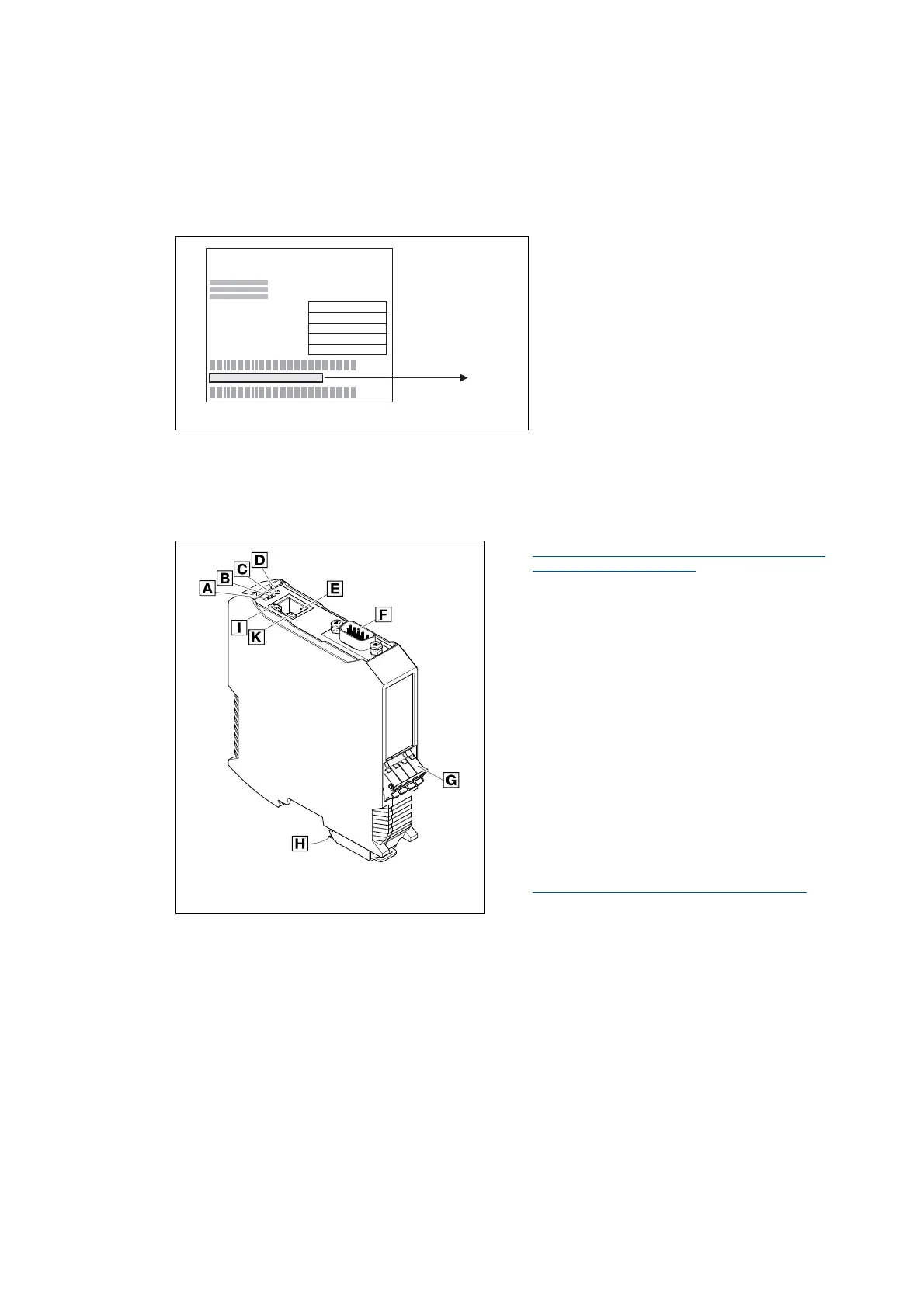

3.2 Identification
The type designation, hardware version and software version of a communication module are
indicated on its nameplate:
[3-1] Identification data
3.3 Connections and interfaces
[3-2] EMF2180IB communication module (EthernetCAN)
2180FEW099
1 "33.2180IBxxyy" type designation:
• 33.2180IB: device series
• xx: hardware version
• yy: software version
E82AF000P0B201XX
L
Type
Id.-No.
Prod.-No.
Ser.-No.
MAC

2180FEW001D
A ... D LED status displays for the communication module
and for CAN communication ( 49)
E Ethernet connection
RJ45 socket with 2 LED status displays
F CAN connection
9-pole Sub-D plug connector
G Voltage supply
4-pole plug connector with spring connection
H PE connection
When it is plugged in, the communication module is
automatically connected to the DIN rail.
The DIN rail must be connected to PE!
I, K LED status displays for Ethernet communication
( 51)
