8 Diagnostics
8.3 LED status displays for Ethernet communication
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.3 LED status displays for Ethernet communication

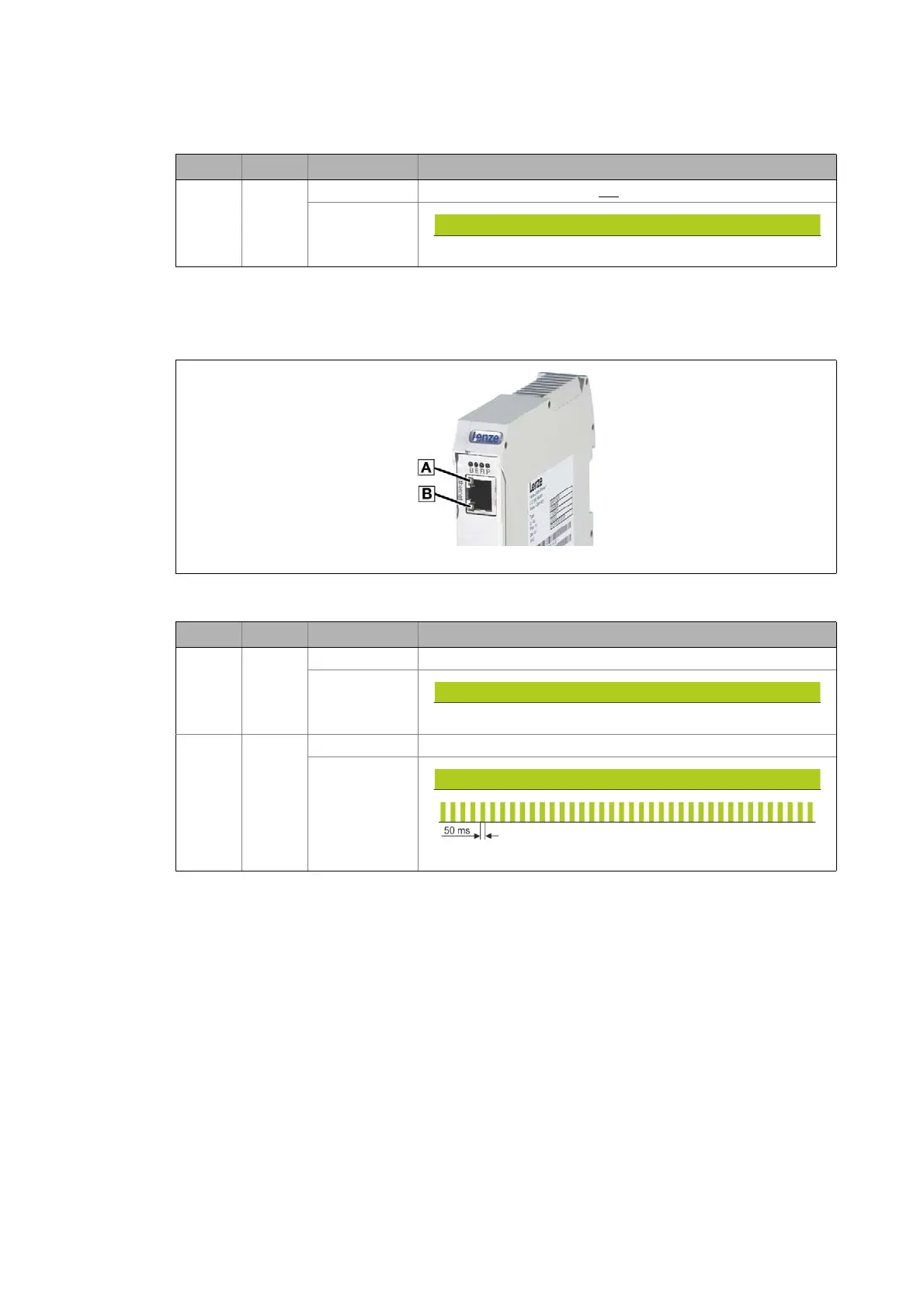

[8-2] LED status displays for Ethernet communication
P
(Power)
Green off The communication module is not supplied with voltage.
on
The communication module is supplied with voltage.
LED Colour Status Description
2180FEW001D
LED Colour Status Description
A
(Link)
Green off No connection to Ethernet
on
Ethernet connection is available.
B
(Activity)
Green off No data transfer
on or
flickering
Data are transmitted or received.
