6 Commissioning
6.4 Initial switch-on
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

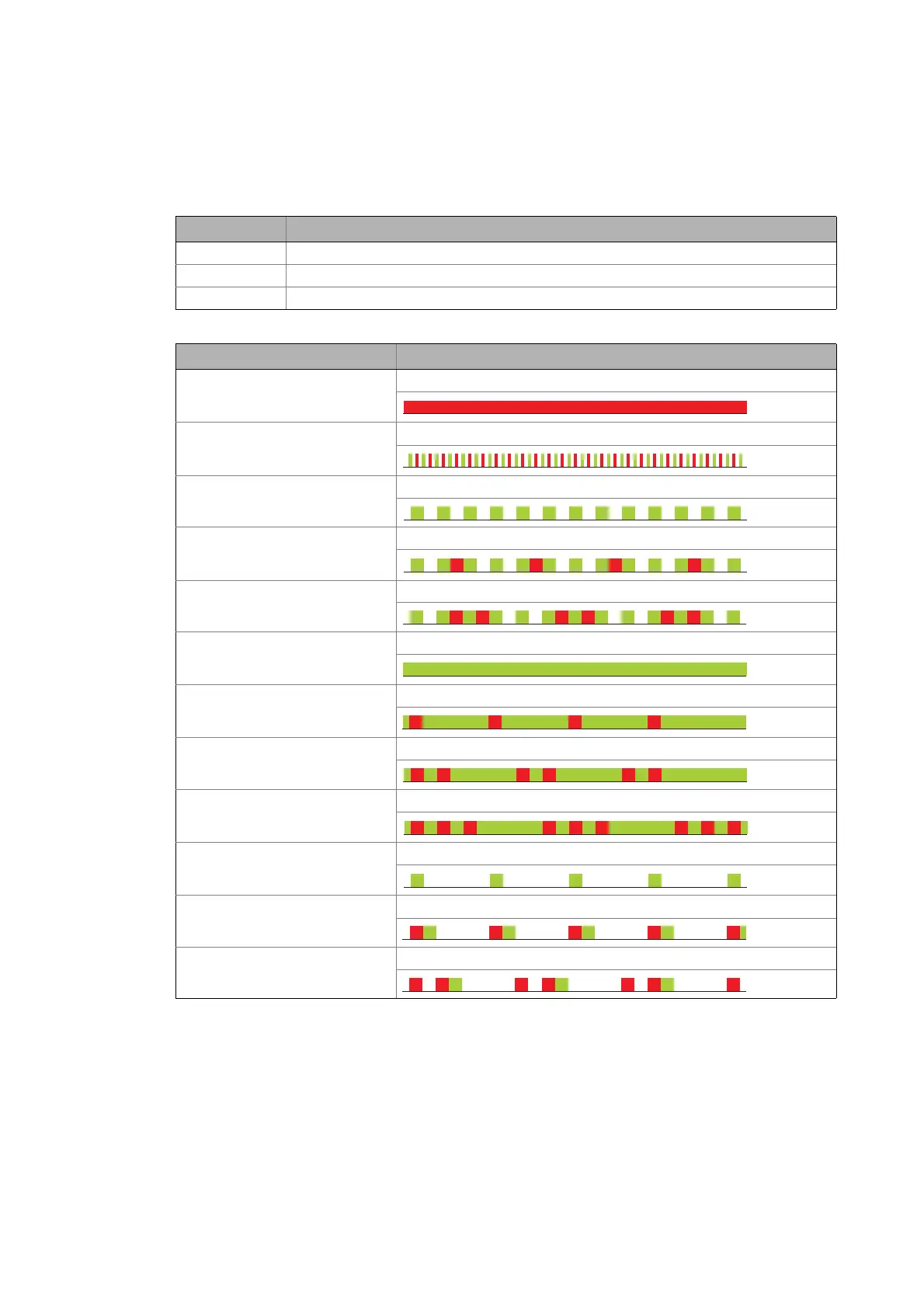

6.4.2 LED signalling in compliance with DR303-3
Connection status to the CAN bus with the following signalling:
LEDs Description
Off Connection to the master is available.
Green CANopen status ("Z")
Red CANopen error ("F")
Status display (LED) Explanation
Constantly red F: Bus-off
Flicker Automatic baud rate detection is active.
Blinking green every 0.2 s Z: Pre-operational, F: No errors
Blinking green every 0.2 s
1 x red blinking, 1 s OFF
Z: Pre-operational, F: Warning limit reached
Green blinking every 0.2 s
2 x red blinking, 1 s OFF
Z: Pre-operational, F: Node guarding event
Constantly green Z: Operational, F: No errors
Constantly green
1 x red blinking, 1 s OFF
Z: Operational, error: Warning limit reached
Constantly green
2 x red blinking, 1 s OFF
Z: Operational, F: Node guarding event
Constantly green
3 x red blinking, 1 s off
Z: Operational, F: Sync message error
Green blinking every second Z: Stopped, F: No errors
Green blinking every second
1 x red blinking, 1 s OFF
Z: Stopped, F: Warning limit reached
Green blinking every second
2 x red blinking, 1 s OFF
Z: Stopped, F: Node guarding event
