Lenze EMF2180IB

5 Installation
5.2 Electrical installation
28
Lenze · EMF2180IB communication module (EthernetCAN) · Communication Manual · DMS 5.1 EN · 09/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

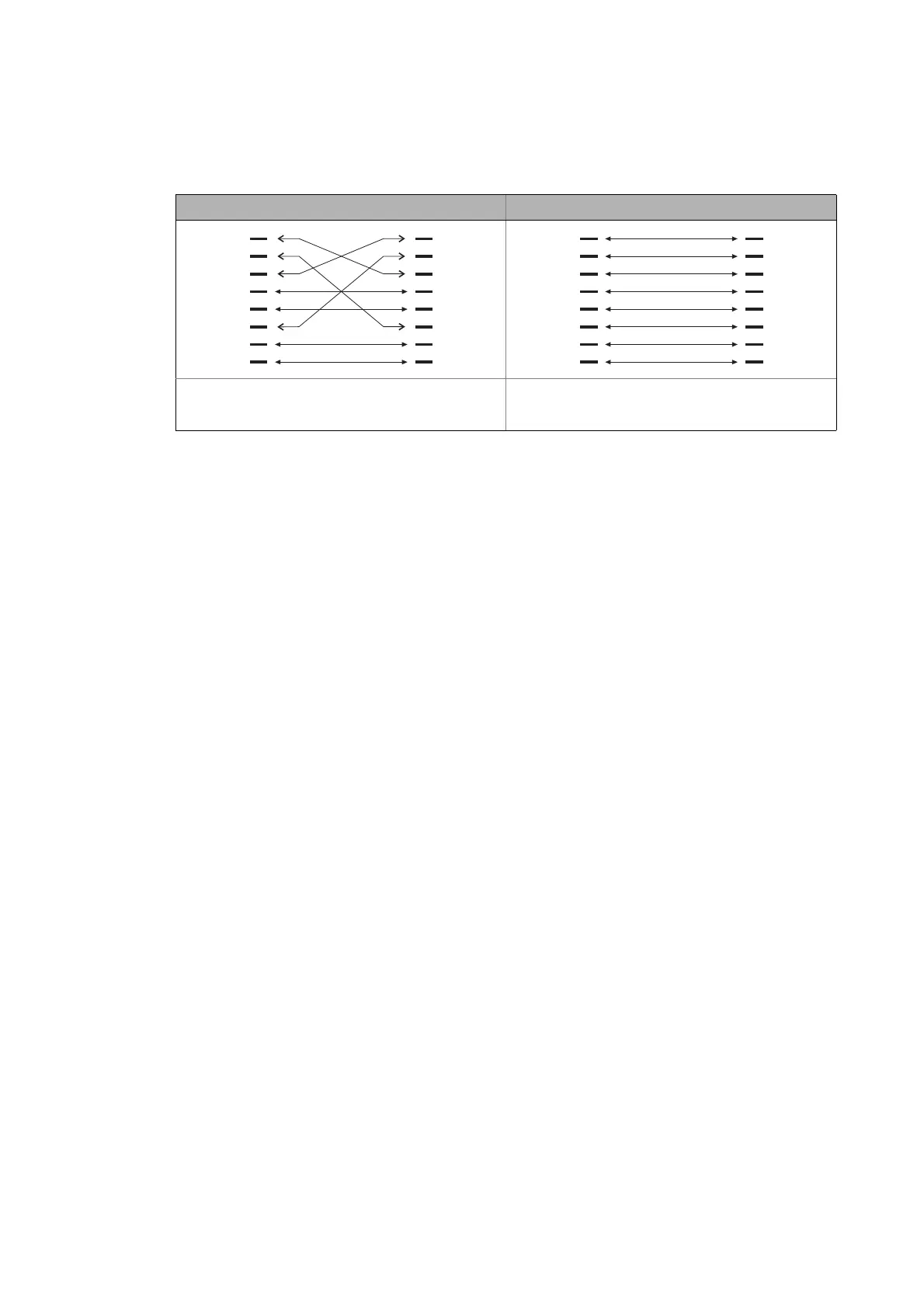

5.2.4.2 Pin assignment and use of the Ethenet cable
100BaseTX - CrossOver Cable 100BaseTX - Standard Patch Cable
The "100BaseTX - CrossOver Cable" is used for direct
coupling of the Engineering PC with the communication
module.
The "100BaseTX - Standard Patch Cable" is used in
conjunction with hubs and switches.
1Tx+ Tx+1
2Tx- Tx-2
3Rx+ Rx+3
44
55
6Rx- Rx-6
77
88
1Tx+ Tx+1
2Tx- Tx-2
3Rx+ Rx+3
44
55
6Rx- Rx-6
77
88
