5 Installation
5.2 Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2.5 Voltage supply
[5-7] Communication via the diagnostic interface (only for Servo Drives 9400)

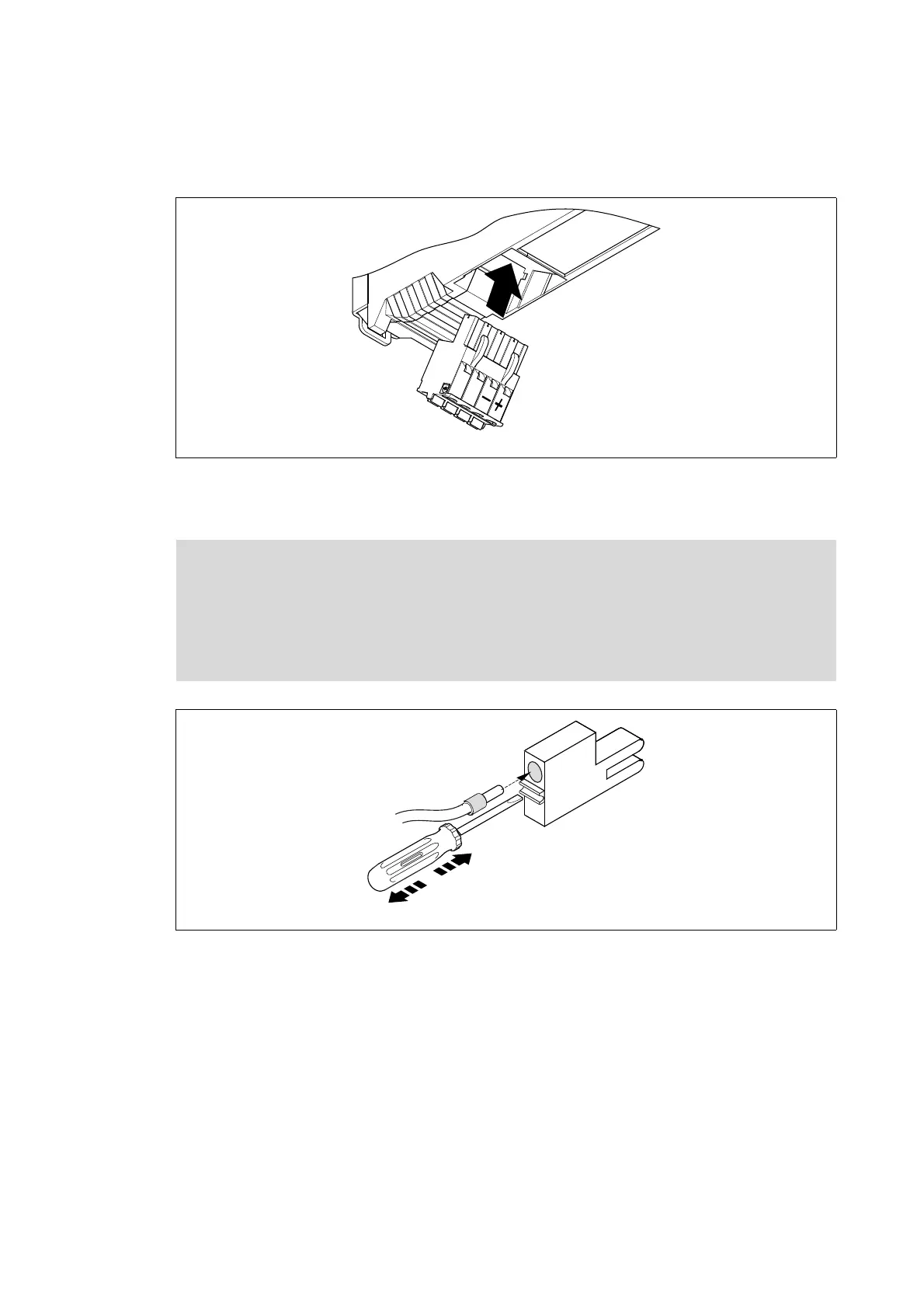

Handling of pluggable terminal strips
[5-8] Use of pluggable terminal strip with spring connection
2181FEW001G
 Stop!
Observe the following to prevent any damage to the plug-on terminal strips and
contacts:
• Wire the plug-on terminal strips first, then plug them on.
• Plug-on terminal strips that are not assigned must also be plugged on.
E82ZAFX013
