5 Installation
5.2 Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2 Electrical installation
5.2.1 Communication via Ethernet and CAN

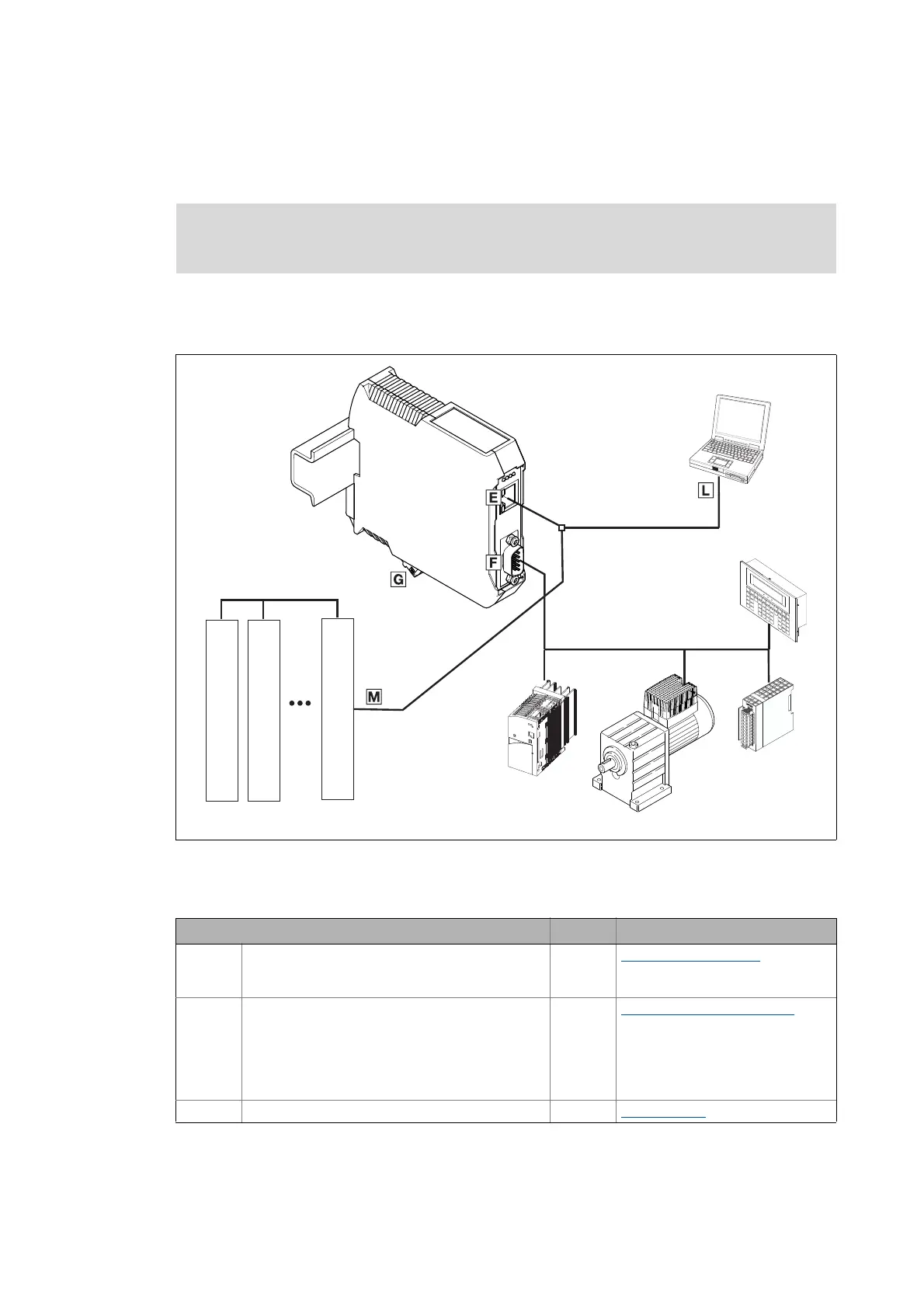

[5-3] Communication via Ethernet and CAN
Installation steps
 Documentation for inverters, the control system, system/machine
Observe the notes and wiring instructions contained in this documentation.
2180FEW008
(CAN on board)
CAN
Ethernet
Servo Drives 9400
9400 9400
9400
Step Position Additional information
1st Establish a connection to the CAN bus:
Plug "EWZ0046" Sub-D plug (see accessories) into the
communication module.
F Connecting the CAN bus
( 20)
2nd Connect the following components via Ethernet with
each other:
• Communication module
• Engineering PC
• Servo Drive 9400
• Other Ethernet nodes
E
L
S
Connecting the Ethernet cable
( 25)
3. Connect voltage supply to the plug connector. G Voltage supply
( 29)
