Lenze · EMF2180IB communication module (EthernetCAN) · Communication Manual · DMS 5.1 EN · 09/2016 · TD17 49
8 Diagnostics
8.1 Error: Cause and remedy
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8Diagnostics
8.1 Error: Cause and remedy

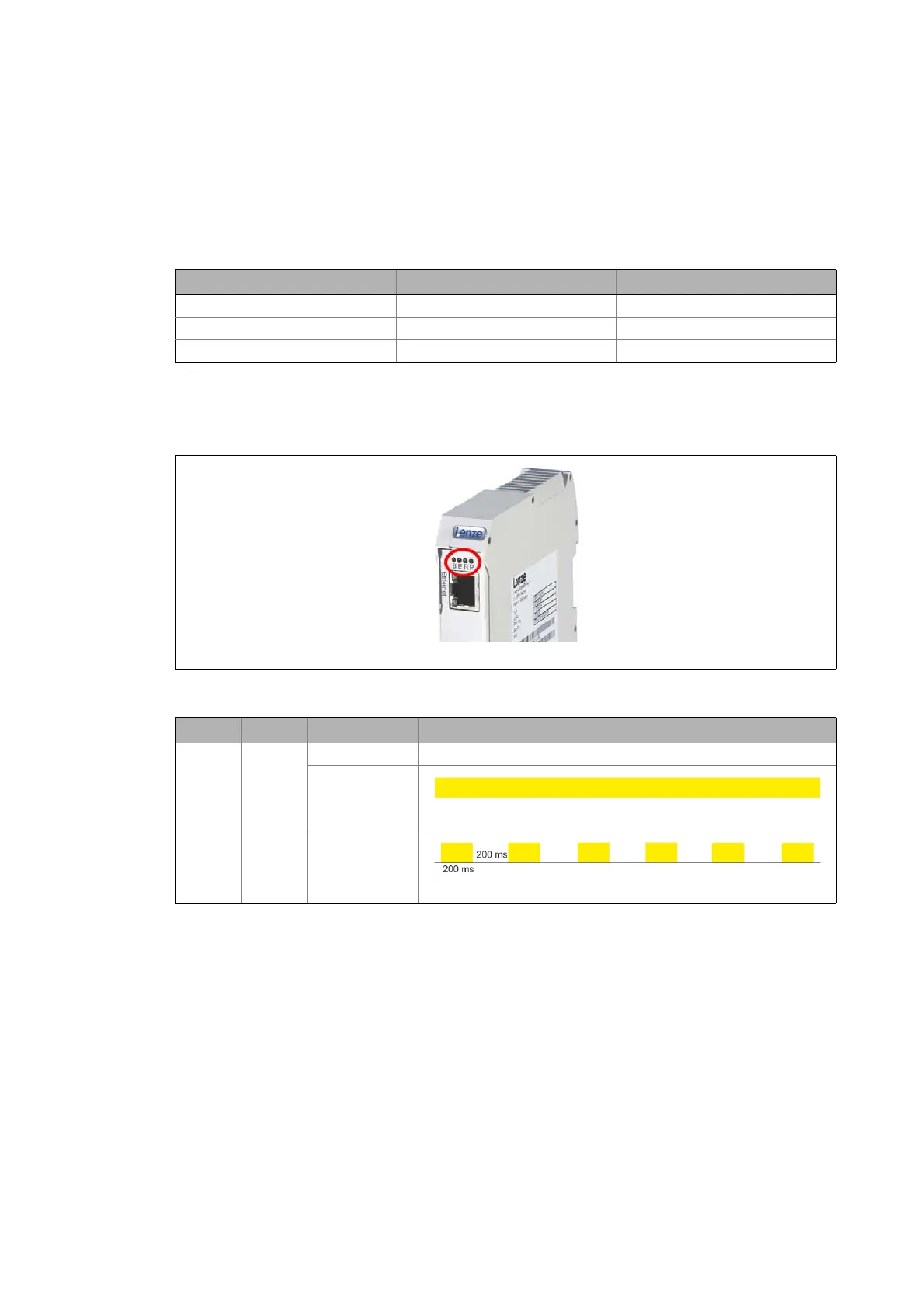

8.2 LED status displays for the communication module and for CAN communication
[8-1] LED status displays for the communication module and for CAN communication
Diagnostics Possible error cause Remedy
Power LED (P) is not on. The device is not switched on. Check external voltage supply.
Error LED (E) is on or blinking. CAN bus error Check CAN wiring.
Link LED is not on. Ethernet wiring error Check Ethernet wiring.
2180FEW001D
LED Colour Status Description
B Yellow off Ethernet baud rate: 10 Mbps
on
Ethernet baud rate: 100 Mbps
Blinking
The IP address is not assigned yet; it is currently being identified.
