Lenze EMF2180IB

5 Installation
5.2 Electrical installation
20
Lenze · EMF2180IB communication module (EthernetCAN) · Communication Manual · DMS 5.1 EN · 09/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

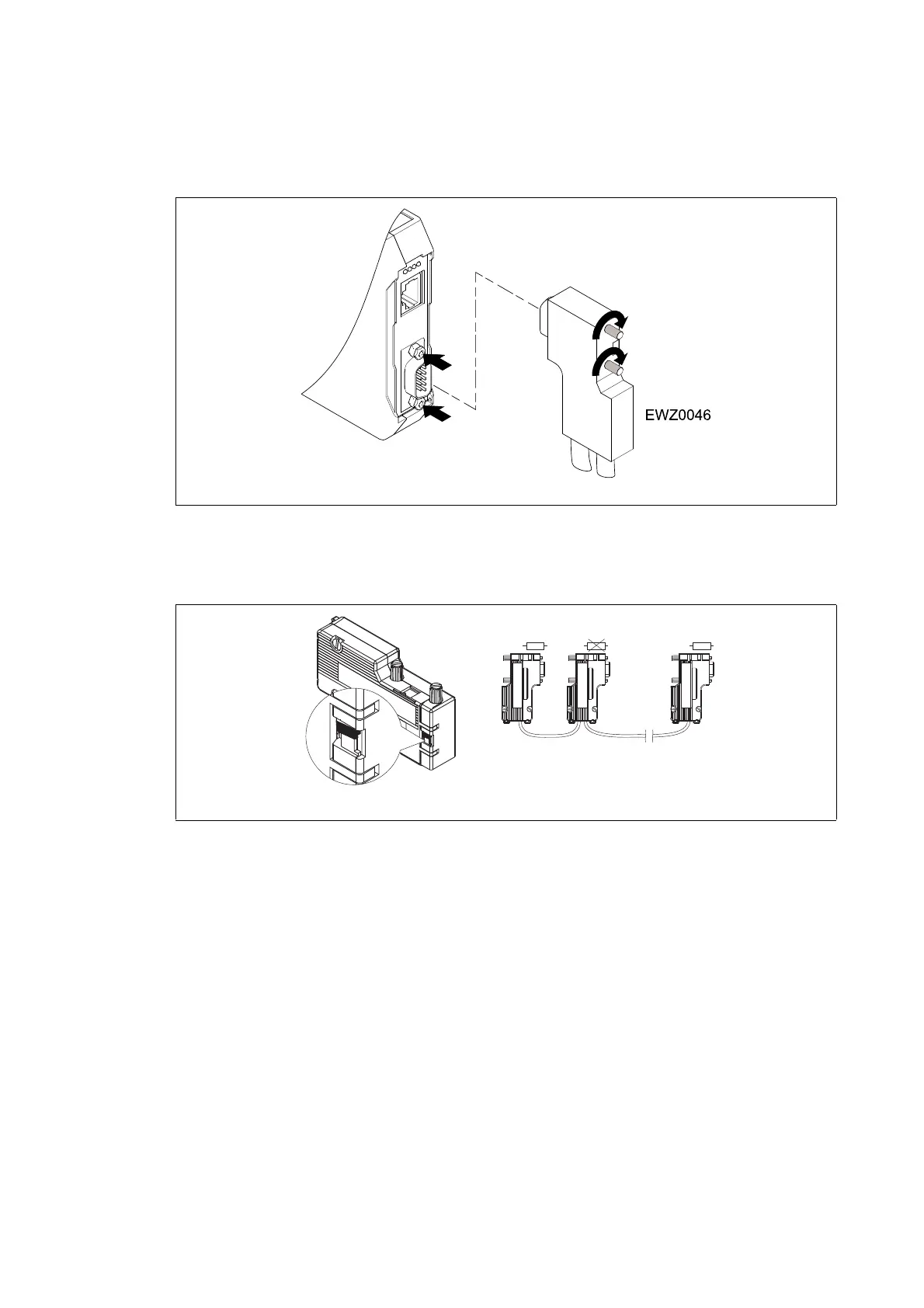

5.2.2 Connecting the CAN bus
The CAN bus must be terminated with resistors (120 ) between CAN-low and CAN-high.
The EWZ0046 Lenze system connector with an integrated terminating resistor complies with the
DS102-1 recommendation of the CiA CAN user organisation. The system connector is not contained
in the scope of supply of the communication module.
2180FEW001K
2181FEW004
L
EWZ0046
O
F
F
O
N
OFF
ON
ON
OFF
ð
ð
ð
ð
OUTIN IN IN
On
Off
On
120 120
120
L
EWZ0046
L
EWZ0046
L
EWZ0046
