Lenze EMF2180IB

5 Installation
5.2 Electrical installation
26
Lenze · EMF2180IB communication module (EthernetCAN) · Communication Manual · DMS 5.1 EN · 09/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2.4.1 Ethernet cable specification
Structure of the Ethernet cable

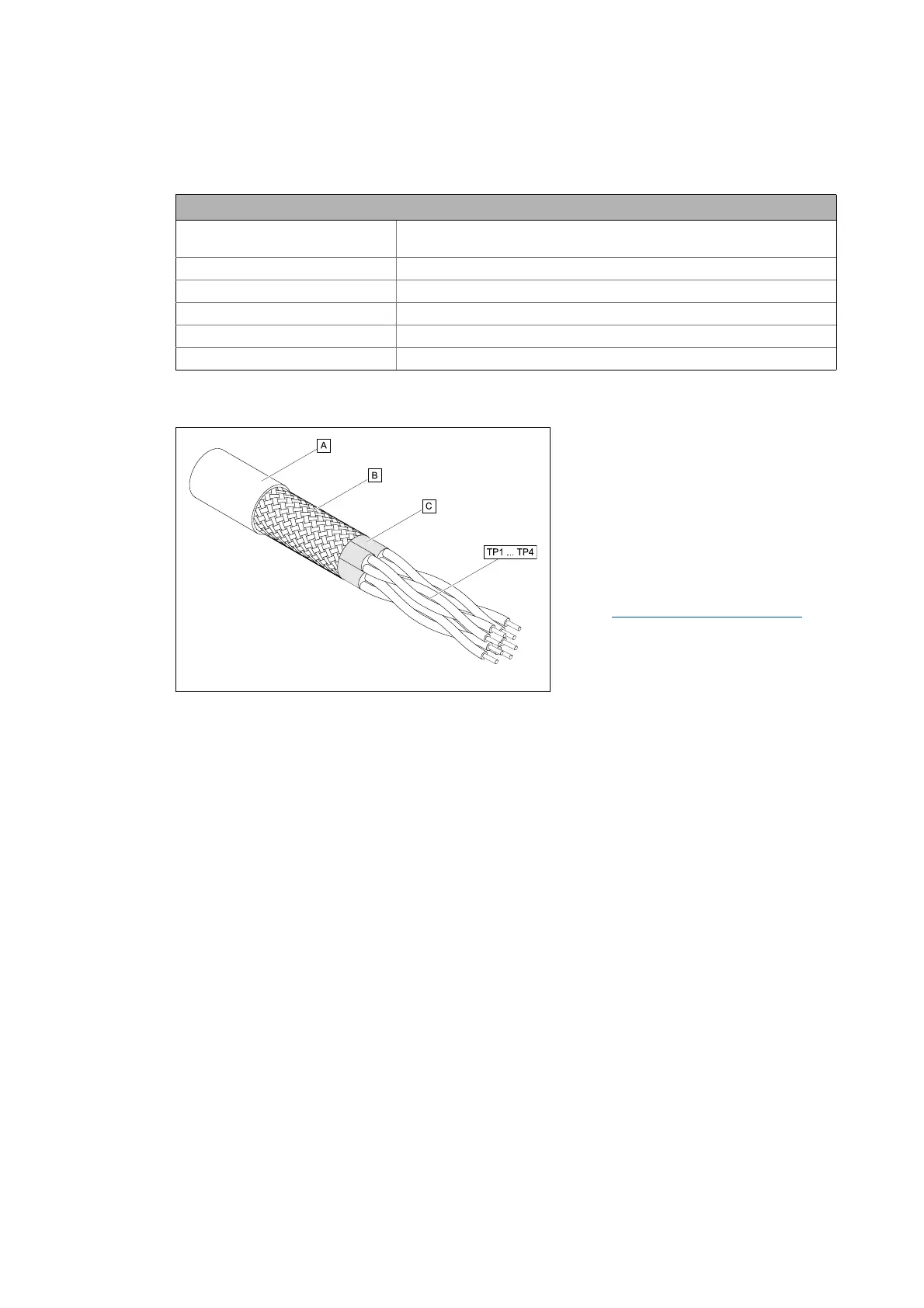

[5-5] Structure of the Ethernet cable (S/FTP, CAT 5e)
Ethernet cable in compliance with IEEE 802.3
Ethernet standard Standard Ethernet (in accordance with IEEE 802.3), 100Base-TX (Fast
Ethernet)
Cable type S/FTP (Screened Foiled Twisted Pair), ISO/IEC 11801 or EN 50173, CAT 5e
Damping 23.2 dB (for 100 MHz and 100 m each)
Crosstalk damping 24 dB (for 100 MHz and 100 m each)
Return loss 10 dB (100 m each)
Surge impedance 100 
E94YCEP016
A Cable insulation
B Braid
C Foil shielding
TP1
...
TP4
Twisted core pairs 1 ... 4
Colour code of the Ethernet cable
( 27)
